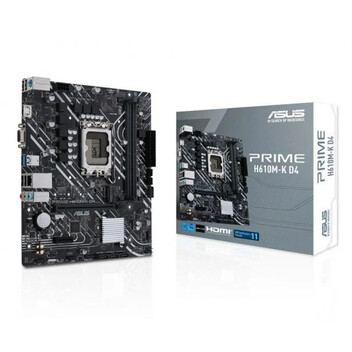

ASUS Prime H610M-K D4: Placa base micro-ATX Intel® H610 (LGA 1700) con DDR4, PCIe 4.0, ranura M.2, Realtek 1 Gb Ethernet, HDMI®, D-Sub, puertos USB 3.2 Gen. 1, SATA 6 Gbps, conectores COM y RGB

Características:

• Zócalo Intel® LGA 1700: Compatible con los procesadores Intel® de 12.ª Gen.
• Refrigeración completa: Disipador PCH y Fan Xpert.
• Conectividad de alta velocidad: ranura M.2 de 32 Gbps, Ethernet de 1 Gb de Realtek y compatibilidad con USB 3.2 Gen. 1.
• 5X Protection III: Funciones de seguridad hardware para proteger todo el sistema.

Especificaciones

• CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® H610 Chipset

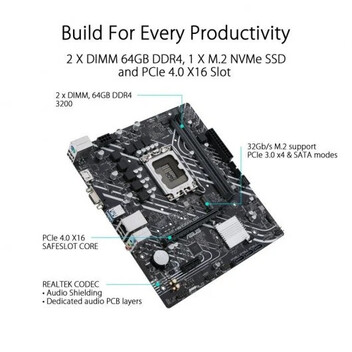

• Memory
  • 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphics
  • 1 x D-Sub
  • 1 x HDMI® port**
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • Intel® 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
  • Intel® H610 Chipset
  • 1 x PCIe 3.0 x1 slot
• Storage
  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Intel® H610 Chipset
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
• Ethernet
  • 1 x Realtek 1Gb Ethernet
• USB
  • Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 4 ports)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding- Audio Shielding- Audio Shielding- Audio Shielding- Audio Shielding
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

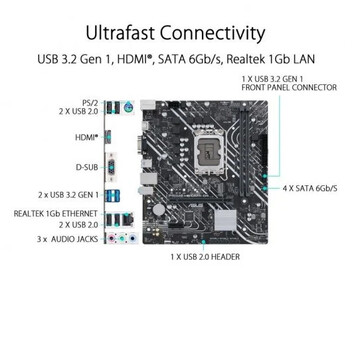

• Back Panel I/O Ports
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x D-Sub port
  • 1 x HDMI®
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors

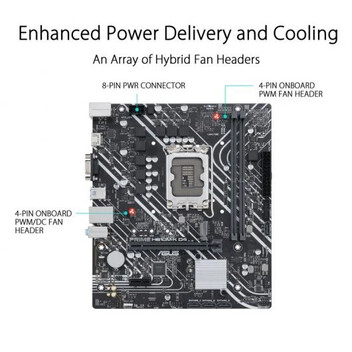

  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Miscellaneous
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header1 x 10-1 pin System Panel header1 x 10-1 pin System Panel header1 x 10-1 pin System Panel header
• Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core - SafeSlot Core - SafeSlot Core
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-Slot
  • ASUS Thermal Solution
  • - Aluminum heatsink design- Aluminum heatsink design- Aluminum heatsink design
  • ASUS Lighting Control
  • - RGB header
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
  • - Performance And Power Saving Utility- Performance And Power Saving Utility
  •  TurboV EVO
  •  EPU
  •  DIGI+ VRM DIGI+ VRM
  •  Fan Xpert
  • ASUS CPU-ZASUS CPU-Z
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE

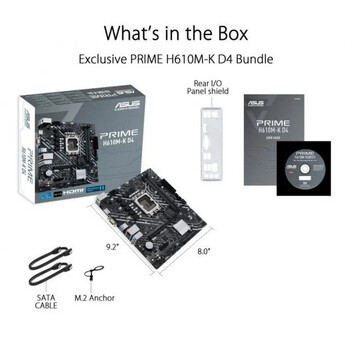

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 ANCHOR
  • Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • mATX Form Factor
  • 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
