Comprar Asus PROART B660-CREATOR D4 pagando menos eligiendo la tienda más barata

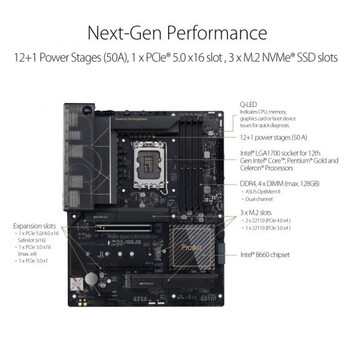

ASUS ProArt B660-Creator D4: Placa base ATX Intel® B660 (LGA1700), 12+1 etapas de alimentación (50 A), PCIe® 5.0, DDR4, USB-C DisplayPort™, Ethernet de 2,5 Gb y 1 Gb, tres ranuras M.2

Características:

• Zócalo LGA 1700 para procesadores Intel® Core™, Pentium® Gold y Celeron® de 12.ª Gen.
• Amplia conectividad: Ethernet de 2,5 Gb y 1 Gb, tres ranuras M.2, compatibilidad con conector Thunderbolt™, USB-C DisplayPort™ y un conector frontal USB 3.2 Gen. 2x2 con Quick Charge 4+.
• Rendimiento de última generación: 12+1 etapas de potencia de 50 amperios, preparado para PCIe® 5.0.

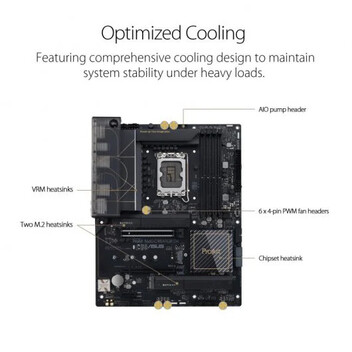

• Diseño térmico optimizado: Un enorme disipador para el VRM y el chipset, disipadores M.2 de aluminio, seis conectores PWM de 4 contactos y un conector de bomba AIO.
• ProArt te da más: Cancelación de ruido bidireccional con IA para una comunicación en línea más clara y ProArt Creator Hub con CreationFirst para controlar todo el sistema.
• Gestión de seguridad avanzada: Restricción de puertos USB, listas negras de software y protección del Registro de Windows mediante ASUS Control Center Express.

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 10 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset Intel® B660
• Memory
  • 4 x DIMM, Max. 128GB, DDR4
  • 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphics
  • 1 x HDMI® port**
  • 1 x Type-C port supports DisplayPort output***
  • 1 x DP IN that will have output through Type-C port
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Support 4K@60Hz as specified in HDMI 2.1.
  • *** Support 8K@60Hz as specified in DisplayPort 1.4.
  • **** Output at the USB Type-C® ports left under RJ45 ports requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on graphic cards' resolution.
• Expansion Slots
  • Intel® 12th Gen Processors
  • 1 x PCIe 5.0/4.0/3.0 x16 slot
  • Intel® B660 Chipset*
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 1 x PCIe 3.0 x1 slot**
  • * Supports Intel® Optane Memory H Series on PCH-attached PCIE slot
  • ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
• Storage
  • Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
  • Intel® 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110
  • - Intel® 12th Gen processors support PCIe 4.0 x4 mode.
  • Intel® B660 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports***
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
  • *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • 1 x Intel® 1Gb Ethernet
  • ASUS LANGuard
  • Wireless & BluetoothM.2 slot only (Key E, PCIe)*
  • *Wi-Fi module is sold separately.
• USB
  • Rear USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 4 x USB 2.0 ports (6 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4.0)
  • 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Power pre-regulator reduces power input noise to ensure consistent performance
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • - Audio cover
  • - Unique de-pop circuit
  • * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
  • ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
  • 1 x USB Type-C® port supports USB 3.2 Gen2 and DisplayPort output
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort (Input only)
  • 1 x HDMI® port
  • 1 x Realtek 2.5Gb Ethernet port
  • 1 x Intel® 1Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4.0)
  • 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ header
• Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - Enhanced DRAM Overcurrent Protection
  • - ESD Guards
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-Connector
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - Flexible M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - ProCool
  • - Pre-mounted I/O shield
  • AURA Sync
  • - AURA RGB header
  • - Addressable Gen 2 headers
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - AURA Creator
  • - AURA Sync
  • - Fan Xpert 4
  • - Two-Way AI Noise Cancelation
  • AI Suite 3
  • - Performance And Power Saving Utility
  • EPU
  • DIGI+ VRM
  • Turbo app
  • ASUS CPU-Z
  • IT Management software supported
  • - ASUS Control Center Express(ACCE)
  • ProArt Creator Hub
  • CreationFirst
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS 128 Mb
• Manageability WOL by PME, PXE

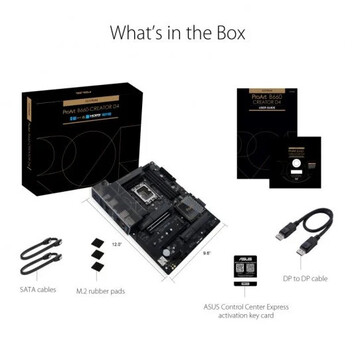

• Accessories
  • Cables
  • 1 x DisplayPort cable
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 3 x M.2 Rubber Packages
  • 1 x Q-connector
• Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x ACC Express Activation Key Card
  • 1 x User guide
• Operating System Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
