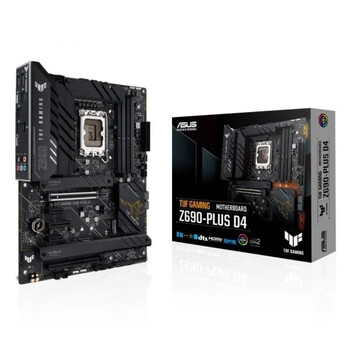

Comprar Asus TUF GAMING Z690-PLUS D4 pagando menos eligiendo la tienda más barata

ASUS TUF GAMING Z690-PLUS D4 toma todos los elementos esenciales de los últimos procesadores Intel® y los combina con características listas para jugar y durabilidad comprobada. Diseñada con componentes de grado militar, una solución de energía mejorada y un sistema de enfriamiento integral, esta placa base ofrece un rendimiento estable y sólido como una roca para juegos de maratón. Estéticamente, TUF GAMING Z690-PLUS D4 luce el nuevo logotipo de TUF Gaming e incorpora elementos de diseño geométrico simples para reflejar la confiabilidad y estabilidad que define la serie TUF Gaming.

Características

• Zócalo Intel® LGA 1700: listo para procesadores Intel Core ™ de 12.a generación
• Solución de energía mejorada: 14 + 1 DrMOS, PCB de seis capas, enchufes ProCool, estranguladores de aleación y capacitores duraderos para una entrega de energía estable

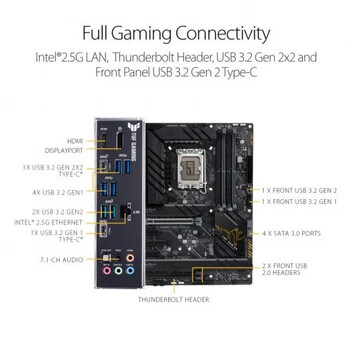

• Conectividad de próxima generación: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, USB 3.2 Gen 2 Type-C frontal, soporte de encabezado Thunderbolt ™ 4
• Hecho para juegos en línea: Intel 2.5 Gb Ethernet y TUF LANGuard
• Cancelación de ruido bidireccional AI: reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias

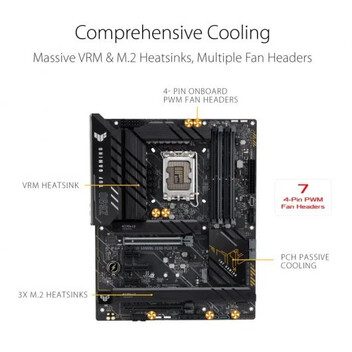

• Refrigeración completa: disipador de calor VRM ampliado, disipador de calor sin ventilador PCH, disipadores de calor M.2, cabezales de ventilador híbridos y utilidad Fan Xpert 4 en Armory Crate

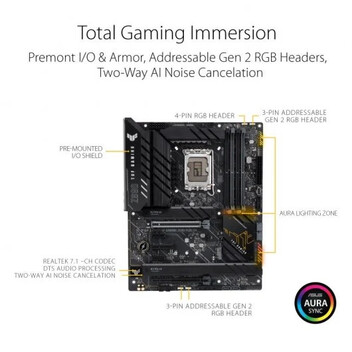

• Efecto Outshine RGB Aura: elegante diseño de iluminación de borde y PCH, encabezados RGB direccionables y soporte de encabezado de tira RGB

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Z690
• Memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
  • /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4
  • ***Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots
  • Intel® 12th Gen Processors*
  • 1 x PCIe 5.0 x16 slot
  • Intel® Z690 Chipset**
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 1 x PCIe 3.0 x4 slot
  • 2 x PCIe 3.0 x1 slots
  • * Please check PCIe bifurcation table in support site.
  • ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
• Storage
  • Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110
  • - Intel® 12th Gen processors support PCIe 4.0 x4 mode
  • Intel® Z690 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
  • ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • TUF LANGuard
• USB
  • Rear USB:Total 8 ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
  • Front USB:Total 7 ports
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • - Audio Cover

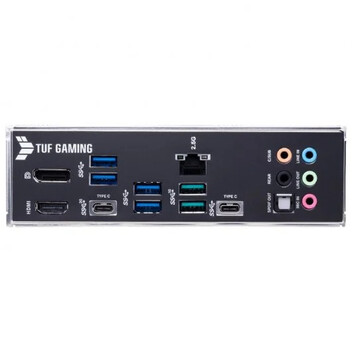

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ header
• Special Features
  • ASUS TUF PROTECTION
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - Enhanced DRAM Overcurrent Protection
  • - ESD Guards
  • - TUF LANGuard
  • - Overvoltage Protection
  • - Safeslot
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - CPU Socket lever protector
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeDIMM
  • AURA Sync
  • - AURA RGB header
  • - Addressable Gen 2 headers
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - AURA Creator
  • - AURA Sync
  • - Fan Xpert 4
  • - Two-Way AI Noise Cancelation
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • MyAsus
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 2 x M.2 Rubber Packages
  • 1 x M.2 SSD screw package
  • 1 x TUF GAMING sticker
• Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x TUF Certification card
  • 1 x User guide
• Operating System
  • Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • ATX
  • 30.5cm x 24.4cm
