Con los rápidos cambios tecnológicos, GIGABYTE siempre sigue las últimas tendencias y brinda a los clientes funciones avanzadas y las últimas tecnologías. Las placas base GIGABYTE están equipadas con una solución de energía mejorada, los últimos estándares de almacenamiento y una conectividad excepcional para permitir un rendimiento optimizado para juegos.

Características:

• AMD Socket AM5: compatible con procesadores AMD Ryzen™ serie 7000
• Rendimiento incomparable: solución VRM digital directa de 6+2+1 fases
• DDR5 de dos canales: 4 DIMM SMD con compatibilidad con módulos de memoria AMD EXPO™ e Intel® XMP
• Almacenamiento SuperSpeed: 2 conectores PCIe 4.0 x4 M.2
• Diseño térmico avanzado y protección térmica M.2: para garantizar la estabilidad de energía VRM y el rendimiento SSD 25110 M.2
• PCIe x16 EZ-Latch con liberación rápida y diseño sin tornillos
• Redes rápidas: LAN de 2,5 GbE
• Conectividad extendida: 2*DP, HDMI, 2*USB-C® 10Gb/s
• Smart Fan 6: cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
• Q-Flash Plus: actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Especificaciones:

• CPU
  • AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD B650
• Memory
  • Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated Graphics Processor:
  • 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 1.4 version and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.
  • ** Support native HDMI 2.1 TMDS compatible ports.
  • (Graphics specifications may vary depending on CPU support.)
  • Support for up to 3 displays at the same time
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • Chipset:
  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
  • Storage Interface
  • CPU:
  • 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
  • Chipset:
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
  • CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • CPU + USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

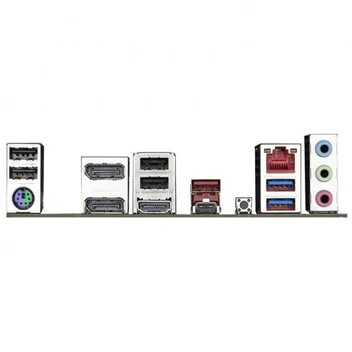

• Back Panel Connectors
  • 4 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 2 x DisplayPorts
  • 1 x HDMI port
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 2 x USB 3.2 Gen 1 ports
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
• H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
• Bundled Software
  • LAN bandwidth management software
• Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Form Factor
  • Micro ATX Form Factor; 24.4cm x 24.4cm
