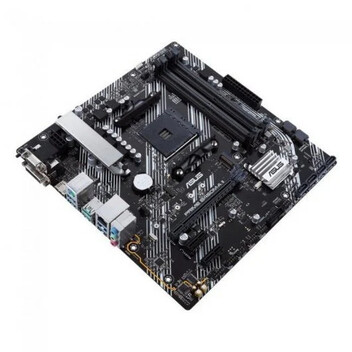

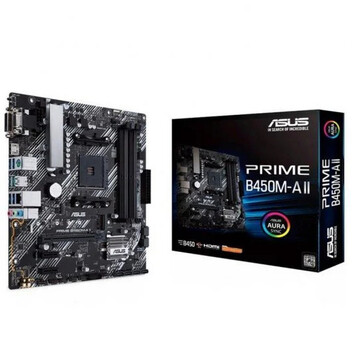

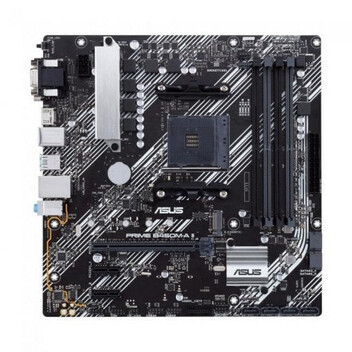

Comprar Asus PRIME B450M-A II al mejor precio de España

Tarjeta Madre micro ATX AMD B450 (Ryzen AM4) con soporte M.2, HDMI / DVI-D / D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Tipo-A, BIOS FlashBack™ e iluminación Aura Sync RGB

Características:

• Refrigeración completa: Disipador VRM, disipador PCH y Fan Xpert 2+.
• Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb y USB 3.2 Gen 2 Tipo A.
• 5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.
• Iluminación Aura Sync RGB: Conector integrado para tiras de LED RGB, que se sincroniza fácilmente con una variedad cada vez mayor de hardware compatible con Aura Sync.

Especificaciones:

• CPU
  • AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *
• Chipset
  • AMD B450
• Memory
  • 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
  • Dual Channel Memory Architecture
  • ECC Memory (ECC mode) support varies by CPU.
• Graphic
  • Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x HDMI 2.0b
• Expansion Slots
  • 3rd/2nd/1st Gen AMD Ryzen™ Processors
  • 1 x PCIe 3.0 x16 (x16 mode)
  • 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 3.0 x16 (x8 mode)
  • AMD Athlon™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 3.0 x16 (x4 mode)
  • AMD B450 chipset
  • 2 x PCIe 2.0 x1
• Storage
  • Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
  • 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *1
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • Athlon™ with Radeon™ Vega Graphics Processors : *1
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
  • 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
  • 2 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
  • AMD B450 chipset :
  • 4 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
• LAN
  • Realtek® RTL8111H
  • ASUS LANGuard
• Audio
  • Realtek 7.1-Channel High Definition Audio CODEC *
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature :
  • - LED-illuminated design
  • - Audio Shielding
  • - Dedicated audio PCB layers
  • - Premium Japanese audio capacitors
  • * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  • Rear USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • Front USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 1 port(s)
  • 4 x USB 2.0 port(s)
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - AURA Creator
  • - AURA Sync
  • AI Suite 3
  • - Performance and Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • Fan Xpert 2+
  • PC Cleaner
  • - EZ update
  • - System Information
  • ASUS CPU-Z
  • AI Charger
  • ASUS EZ Installer
  • DAEMON Tools
  • Norton Anti-virus software (Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
  • ASUS 5X PROTECTION III
  • - ASUS DIGI+ VRM
  • - ASUS LANGuard
  • - ASUS Overvoltage Protection
  • - ASUS SafeSlot Core
  • - ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
  • - ASUS Q-DIMM
  • - ASUS Q-Slot
  • ASUS Thermal Solution
  • - Aluminum heatsink design
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • AURA Sync
  • - AURA RGB header
  • ASUS Lighting Control

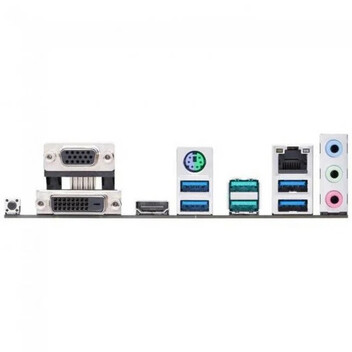

• Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 3 x Audio jack(s)
  • 1 x BIOS FlashBack™ Button(s)
• Internal I/O Ports
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 2 x Chassis Fan connector(s) (2 x 4 -pin)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 1 x COM port(s) connector(s)
  • 6 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x COM port header
  • 1 x Speaker connector
  • 1 x RGB Header
• Accessories
  • User's manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Operating System
  • Windows® 10 64-bit
  • Windows® 7 64-bit *2
• Form Factor
  • mATX Form Factor
  • 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
• Note
  • 1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed.
  • 2*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
