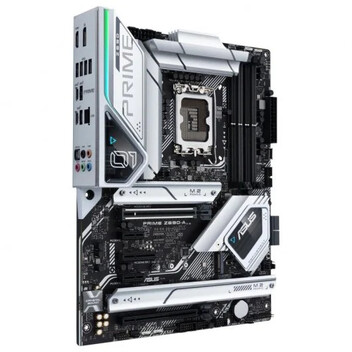

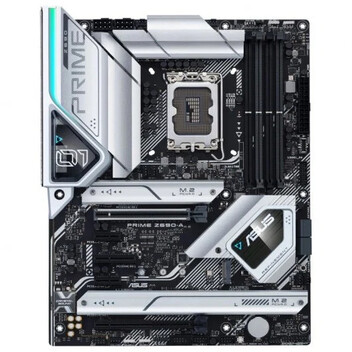

Sobre el producto

Las placas base de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® de 12.ª generación. Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, Prime Z690-A ofrece a los usuarios y constructores de PC una variedad de opciones de ajuste de rendimiento a través de funciones de software y firmware intuitivas.

ASUS Prime Z690-A ofrece una construcción elegante y de aspecto futurista con un acabado en blanco y negro, elementos de diseño inspirados en el transbordador espacial, placa de identificación metálica y cubierta de PCB.

Características

• Zócalo Intel® LGA 1700: listo para procesadores Intel de 12.a generación
• Solución de energía mejorada: 16 + 1 DrMOS, enchufes ProCool, estranguladores de aleación y capacitores duraderos para una entrega de energía estable
• AI Overclocking: optimiza el rendimiento en función de la CPU y las cargas más frías para lograr resultados que se acercan mucho al ajuste manual realizado por expertos.
• AI Cooling: administra y controla todos los ventiladores de la placa base, optimizando automáticamente la configuración en función de la carga y la temperatura actuales del sistema
• Cancelación de ruido bidireccional AI: reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias
• Refrigeración completa: grandes disipadores de calor VRM, disipadores de calor M.2, placa posterior M.2 con Q-Latch, cabezales de ventilador híbridos y Fan Xpert 4
• Conectividad de próxima generación: memoria DDR5, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, USB 3.2 Gen 2 Type-C® del panel frontal, soporte de encabezado Thunderbolt ™ 4, 4 PCIe® 4.0 M.2

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Z690
• Memory
  • 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types.
  • ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • Intel®12th Gen Processors*
  • 1 x PCIe 5.0/4.0/3.0 x16 slot(s)
  • Intel® Z690 Chipset**
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 1 x PCIe 3.0 x4 slot
  • 2 x PCIe 3.0 x1 slots
  • * Please check PCIe bifurcation table in support site.
  • ** Supports Intel® Optane Memory H Series on PCH-attached PCIE slot.
• Storage
  • Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel®12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110
  • - Intel®12th Gen processors support PCIe 4.0 x4 mode.
  • Intel® Z690 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
  • ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• USB
  • Rear USB:Total 8 ports
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
  • Front USB:Total 7 ports
  • 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Audio
  • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
  • - Impedance sense for front and rear headphone outputs
  • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • - Supports up to 32-Bit/192 kHz playback*
  • Audio Features
  • - Audio Shielding
  • - Power pre-regulator reduces power input noise to ensure consistent performance
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • - Audio cover
  • - Unique de-pop circuit
  • * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

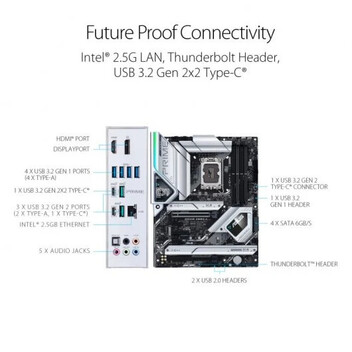

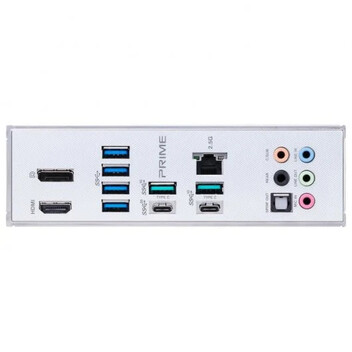

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C® )
  • 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin CPU OPT Fan header(s)
  • 1 x 4-pin AIO Pump header(s)
  • 4 x 4-pin Chassis Fan header(s)
  • 1 x W_PUMP+ header(s)
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 header(s)
  • 1 x AURA RGB header(s)
  • 1 x Clear CMOS button
  • 1 x COM Port header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x Power button
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ header
• Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - Enhanced DRAM Overcurrent Protection
  • - ESD Guards
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-Connector
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink backplate
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - Box headers
  • - Clear CMOS button
  • - CPU socket lever protector
  • - ProCool
  • - Pre-mounted I/O shield
  • AURA Sync
  • - AURA RGB header(s)
  • - Addressable Gen 2 header(s)
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - AURA Creator
  • - AURA Sync
  • - Fan Xpert 4
  • - Two-Way AI Noise Cancelation
  • AI Suite 3
  • -Easy Optimization with AI Overclocking
  • TPU
  • EPU
  • DIGI+ VRM
  • Turbo app
  • ASUS CPU-Z
  • DTS:X® Ultra
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • FlexKey
  • MemTest86
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE

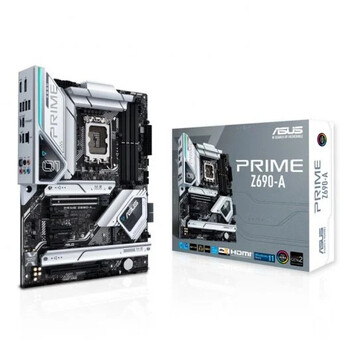

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x M.2 Rubber Package(s)
  • 1 x Q-connector
  • 1 x M.2 Q-Latch package(s)
  • Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • ATX
  • 30.5cm x 24.4cm
