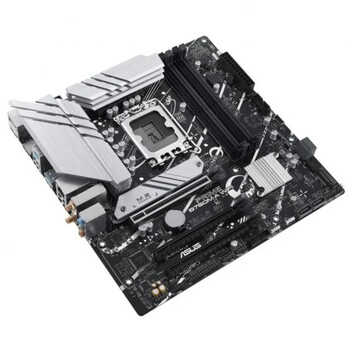

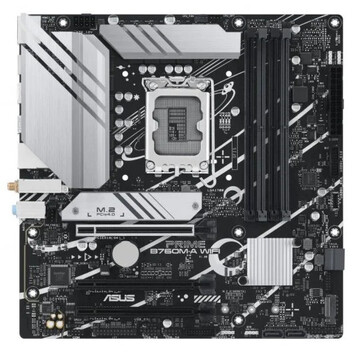

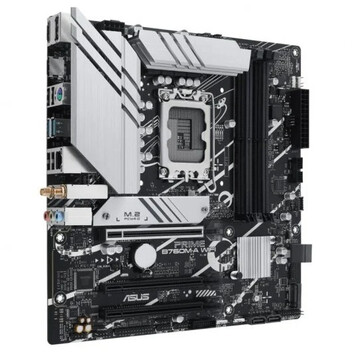

PRIME B760M-A WIFI - Placa base Intel B760 (LGA 1700) mATX con PCIe 4.0, DDR5, 2x M.2, 2.5Gb Ethernet, WiFi 6, DisplayPort, 2x HDMI, SATA 6 Gbps, USB 3.2 Gen 2, USB 3.2 Gen 1 Tipo C, Aura Sync

Características:

• Zócalo Intel LGA 1700: Compatible con los procesadores Intel de 13ª y 12ª generación
• Conectividad ultrarrápida: PCIe 4.0, dos ranuras M.2, Ethernet Realtek de 2,5 Gb, Wi-Fi 6, USB 3.2 Gen 2 trasero, USB 3.2 Gen 1 tipo C delantero
• Refrigeración completa: Disipadores VRM, disipador M.2, disipador PCH, cabezales de ventilador híbridos y Fan Xpert 2+.
• Tecnología de memoria exclusiva: ASUS Enhanced Memory Profile II y ASUS OptiMem II
• Iluminación Aura Sync RGB: Cabezales direccionables Gen 2 integrados y cabezal Aura RGB para tiras de LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync.

Especificaciones ASUS PRIME B760M-A WIFI

•  CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® B760 Chipset
• Memory
  • 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
  • 1 x DisplayPort**
  • 2 x HDMITM ports***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMITM 2.1.
• Expansion Slots
  • Intel® 13th & 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
  • Intel® B760 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
  • Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth®
  • Wi-Fi 6
  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.2
  • * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB
  • Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 10 ports)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 2 x HDMITM ports
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
• Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core+
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-LED Core
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - ProCool
  • Aura Sync
  • - Aura RGB header
  • - Addressable Gen 2 headers
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 2+
  • - Power Saving
  • AI Suite 3
  • - Digi+ VRM
  • - PC Cleaner
  • ASUS CPU-Z
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE

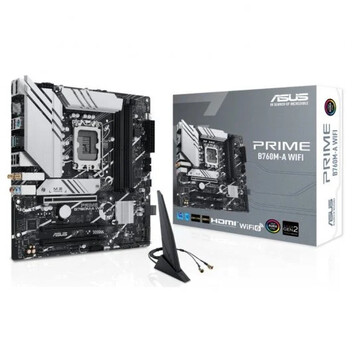

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x Screw package for M.2 SSD
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • mATX Form Factor
  • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
