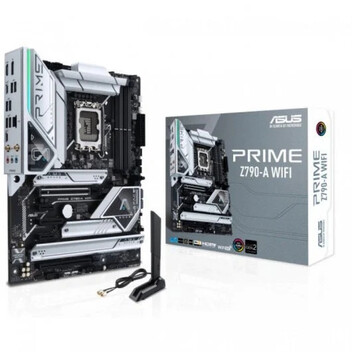

Prime Z790-A WIFI, una placa base Intel Z790 LGA 1700 ATX con PCIe® 5.0, cuatro ranuras M.2, 16+1 DrMOS, DDR5, Intel WIFI 6E, LAN de 2,5 Gb, HDMI®, DP, USB 3.2 Gen 2x2 tipo C®, USB 3.2 Gen 2 tipo C® frontal, compatibilidad con Thunderbolt™ (USB4®)

Características

• Zócalo Intel® LGA 1700: compatible con los procesadores Intel® de 12.ª y 13.ª Gen
• Solución de alimentación mejorada: 16 + 1 DrMOS, conectores ProCool, bobinas de aleación y condensadores duraderos para un suministro de energía estable.
• Refrigeración completa: grandes disipadores térmicos del VRM, disipadores de M.2, placa posterior M.2, cabezales de ventilador híbridos y Fan Xpert 4
• Conectividad de última generación: memoria DDR5, PCIe® 5.0, Ethernet Intel 2,5 Gb, USB 3.2 Gen2x2 tipo C®, panel frontal con USB 3.2 Gen 2 tipo C®, compatibilidad con cabezal Thunderbolt™ (USB4®), 4 PCIe® 4.0 M.2
• Tecnología de IA y memoria exclusiva: AI Overclocking, AI Cooling II, Cancelación de ruido bidireccional con IA, ASUS Enhanced Memory Profile II y ASUS OptiMem II
• Diseño de PC fácil de usar: ranura PCIe Q-Release, M.2 Q-Latch, Q-LED Core y SafeSlot

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® Z790 Chipset
• Memoria
  • 4 x DIMM, Max. 128GB, DDR5 7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Gráficos
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • **Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • ***Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
• Ranuras de expansión
  • Intel® 13th & 12th Gen Processors*
  • 1 x PCIe 5.0 x16 slot
  • Intel® Z790 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x4 slot
  • 2 x PCIe 3.0 x1 slots
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Almacenamiento
  • Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
  • Intel® Z790 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth® v5.3**
  • * WiFi 6E 6GHz regulatory may vary between countries.
  • ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
  • - Impedance sense for front and rear headphone outputs
  • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • - Supports up to 32-Bit/192 kHz playback*
  • Audio Features
  • - Audio Shielding
  • - Power pre-regulator reduces power input noise to ensure consistent performance
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • - Audio cover
  • - Unique de-pop circuit
  • * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• Puertos de E/S del panel posterior
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 3 x Audio jacks
• Conectores de E/S internos
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x Power button
  • 1 x SPI TPM header (14-1pin)
  • 1 x  20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™  header
• Características especiales
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - ESD Guards
  • - LANGuard
  • - Overvoltage Protection
  • - Safeslot
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - PCIe Slot Q-Release
  • - Q-Connector
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - Box Headers
  • - Clear CMOS button
  • - CPU Socket lever protector
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeDIMM
  • Aura Sync
  • - Aura RGB header
  • - Addressable Gen 2 headers
• Funciones de software
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 4 (with AI Cooling II)
  • - Power Saving
  • - Two-Way AI Noise Cancellation
  • AI Suite 3
  • - TurboV EVO
  • - DIGI+ VRM
  • - PC Cleaner
  • ASUS CPU-Z
  • DTS:X® Ultra
  • MyASUS
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • MemTest86
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manejabilidad
  • WOL by PME, PXE
• Accesorios
  • Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antenna
  • 1 x Q-connector
  • 2 x M.2 Rubber Packages
  • 1 x Screw package for M.2 SSD
• Documentation
  • 1 x User guide
• Sistema operativo
  • Windows® 11, Windows® 10 64-bit
• Factor de forma
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
