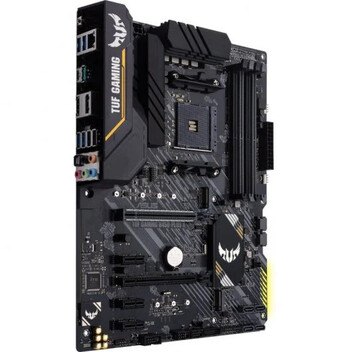

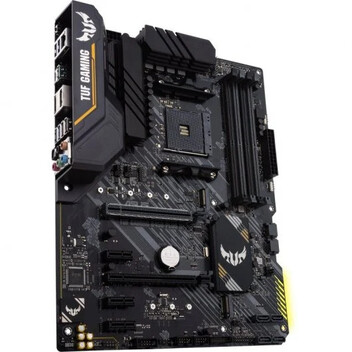

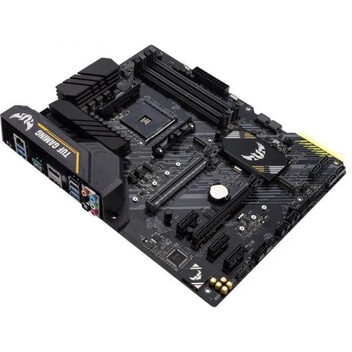

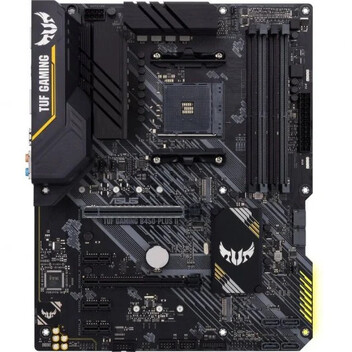

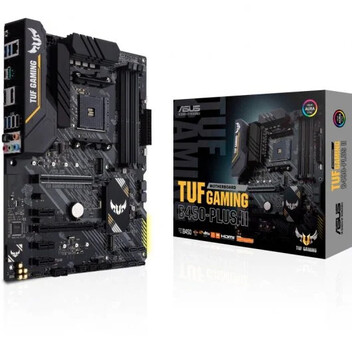

Comprar Asus TUF GAMING B450-PLUS II pagando menos eligiendo la tienda más barata

Tarjeta madre para juegos AMD B450 (AM4) ATX con doble M.2, micrófono con cancelación de ruido IA, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A y Type-C con iluminación Aura Sync RGB.

TUF Gaming B450-PLUS II destila elementos esenciales de la última plataforma AMD y los combina con características listas para jugar y durabilidad comprobada. Diseñada con componentes de grado militar, una solución de energía mejorada y un conjunto completo de opciones de enfriamiento, esta placa base ofrece un rendimiento sólido con una estabilidad de juego inquebrantable.

Cuando construye con una placa base TUF Gaming, también se beneficia de TUF Gaming Alliance, una colaboración de ASUS con socios industriales confiables que garantiza una construcción más fácil, la mejor compatibilidad y una estética complementaria desde los componentes hasta la carcasa.

Características:

• Refrigeración completa: Disipadores VRM, disipador PCH y Fan Xpert 4 core.
• Conectividad Next-gen: Compatibilidad con USB 3.2 Gen 2 Type-A y Type-C.
• Códec Realtek S1200A: Calidad de audio impecable con una relación señal-ruido sin precedentes de 108 dB para salida de línea estéreo y SNR de 103 dB para entrada de línea.
• Micrófono con cancelación de ruido AI: Proporciona una comunicación de voz nítida en el juego.
• Iluminación Aura Sync RGB: Sincronice la iluminación LED con una amplia variedad de equipos de PC compatibles.

Especificaciones:

• CPU
  • AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
  • * Refer to www.asus.com for CPU support list
• Chipset
  • AMD B450
• Memory
  • 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
  • Dual Channel Memory Architecture
  • ECC Memory (ECC mode) support varies by CPU.
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • * The maximum memory frequency supported varies by processor.
• Graphic
  • Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.0b
  • *Graphics specifications may vary between CPU types.
• Multi-GPU Support
  • Supports AMD CrossFireX™ Technology
• Expansion Slots
  • 3rd/2nd/1st Gen AMD Ryzen™ Processors
  • 1 x PCIe 3.0/2.0 x16 (x16 mode)
  • 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 3.0/2.0 x16 (x8 mode)
  • AMD Athlon™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 3.0/2.0 x16 (x4 mode)
  • AMD B450 chipset
  • 1 x PCIe 2.0 x16 (max at x4 mode) *1
  • 3 x PCIe 2.0 x1
• Storage
  • 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
  • AMD Athlon™ with Radeon™ Vega Graphics Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2
  • 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
  • 2 x SATA 6Gb/s port(s)
  • Support Raid 0, 1, 10
  • AMD B450 chipset :
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*3
  • 4 x SATA 6Gb/s port(s)
  • Support Raid 0, 1, 10
• LAN
  • Realtek® L8200A
  • TUF LANGuard
• Audio
  • Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *4
  • Audio Feature :
  • - Exclusive DTS Custom for GAMING Headsets.
  • - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  • - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  • - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
• USB Ports
  • Rear USB Port ( Total 8 )
  • 2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x )
  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • 2 x USB 2.0 port(s)(2 x Type-A)
  • Front USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 1 port(s)
  • 4 x USB 2.0 port(s)
• Special Features
  • ASUS TUF PROTECTION
  • - ASUS SafeSlot: Protect your graphics card Investment
  • - ASUS Overvoltage Protection: World-class circuit-protecting power design
  • - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  • - ASUS DIGI+ VRM: Precision control for stable power
  • - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  • AURA :
  • - Aura Lighting Control
  • - Aura RGB Strip Headers
  • ASUS Exclusive Features :
  • - AI Suite 3
  • - Ai Charger
  • - Turbo LAN
  • - PC Cleaner
  • - Armoury Crate
  • - BIOS FlashBack™ Button
  • ASUS Quiet Thermal Solution :
  • - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  • - ASUS Fan Xpert 4 Core
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS USB BIOS FlashBack™
  • - ASUS UEFI BIOS EZ Mode
  • ASUS Q-Design :
  • - ASUS Q-Slot
  • - ASUS Q-DIMM
  • Armoury Crate
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - AI Noise-Canceling Microphone
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert 4 core
  • - EZ update
  • - PC Cleaner
  • TUF GAMING CPU-Z
  • AI Charger
  • ASUS Turbo LAN
  • DAEMON Tools
  • DTS Custom for GAMING Headsets
  • Norton Anti-virus software (Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
  • ASUS TUF PROTECTION
  • - ASUS DIGI+ VRM
  • - ASUS Enhanced DRAM Overcurrent Protection
  • - ASUS ESD Guards
  • - TUF LANGuard
  • - ASUS Overvoltage Protection
  • - ASUS SafeSlot
  • - ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
  • - ASUS Q-DIMM
  • - ASUS Q-Slot
  • ASUS Thermal Solution
  • - Aluminum heatsink design
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • AURA Sync
  • - AURA RGB headers
• Back I/O Ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A)
  • 4 x USB 3.2 Gen 1 Type-A
  • 2 x USB 2.0
  • 5 x Audio jack(s)
  • 1 x BIOS FlashBack™ Button(s)
• Internal I/O Ports
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 3 x Chassis Fan connector(s) (3 x 4 -pin)
  • 1 x AIO_PUMP connector (1 x 4 -pin)
  • 2 x Aura RGB Strip Header
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
  • 1 x SPI TPM header
  • 6 x SATA 6Gb/s connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x COM port header
• Accessories
  • User's manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x TUF GAMING Sticker
  • 1 x TUF Certification card(s)
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Operating System
  • Windows® 10 64-bit
  • Windows® 7 64-bit *5
• Form Factor
  • ATX Form Factor
  • 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
