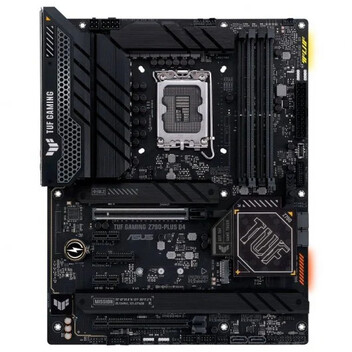

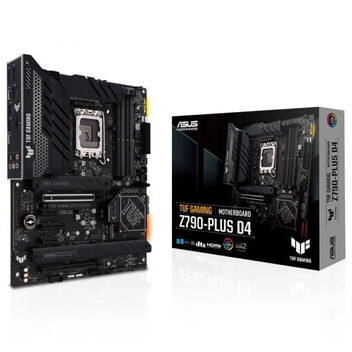

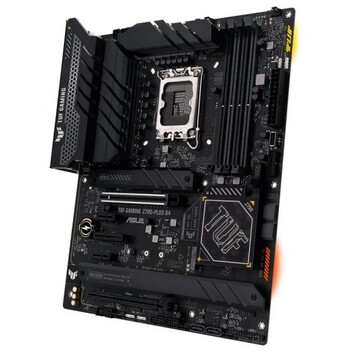

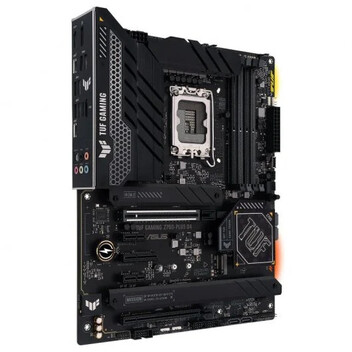

Placa base Intel® Z790 (LGA1700) ATX Gaming, 16+1 etapas de potencia DrMOS, PCIe® 5.0, memoria DDR4, cuatro ranuras M.2 y Ethernet Intel 2,5 Gb, HDMI®, DisplayPort™, USB 3.2 Gen 2x2 Tipo-C®, USB 3.2 Gen 2 Tipo C frontal, SATA 6 Gbps, cabecera Thunderbolt™ 4 e iluminación Aura Sync RGB.

Características

• Zócalo Intel® LGA 1700: compatible con los procesadores Intel Core™ de 13.ª Gen
• Solución de alimentación mejorada: 16 + +1 DrMOS, PCB de seis capas, Zócalos ProCool, bobinas de aleación y condensadores duraderos para un suministro de energía estable.
• Conectividad de última generación: PCIe® 5.0, USB 3.2 Gen2x2 de tipo C®, USB 3.2 Gen 2 de tipo C frontal, compatible con cabezal Thunderbolt™ 4.
• Diseñado para jugar en línea: Ethernet Intel 2,5 Gb y TUF LANGuard
• Cancelación de ruido bidireccional con IA: reduce el ruido de fondo del micrófono y la salida de audio para ofrecer una comunicación nítida al jugar o realizar videoconferencias.
• AI Cooling II: Equilibra la temperatura y el sonido de cualquier equipo con un solo clic.
• Refrigeración completa: disipadores térmicos del VRM y PCH más grandes, disipadores térmicos M.2, cabezales de ventiladores híbridos y utilidad Fan Xpert 4 en Armoury Crate.
• Efectos RGB de Aura Sync: elegante diseño de iluminación en los bordes, cabezales RGB direccionables y soporte para cabezales con tiras RGB.

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® Z790 Chipset
• Memoria
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
  • /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Gráficos
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
• Ranuras de expansión
  • Intel® 13th & 12th Gen Processors*
  • 1 x PCIe 5.0 x16 slot
  • Intel® Z790 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x4 slot
  • 2 x PCIe 3.0 x1 slots
  • * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
  • - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Almacenamiento
  • Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110
  • - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
  • Intel® Z790 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • TUF LANGuard
• USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
  • - Impedance sense for front and rear headphone outputs
  • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • - Supports up to 32-Bit/192 kHz playback*"
  • Audio Features
  • - Audio Shielding
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • - Audio Cover
  • * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• Puertos de E/S del panel posterior
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Conectores de E/S internos
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ (USB4®) header
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ (USB4®) header
• Características especiales
  • ASUS TUF PROTECTION
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - ESD Guards
  • - TUF LANGuard
  • - Overvoltage Protection
  • - Safeslot
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - PCIe Slot Q-Release
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - CPU Socket lever protector
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeDIMM
  • AURA Sync
  • - Aura RGB header
  • - Addressable Gen 2 headers
• Funciones de software
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 4 (with AI Cooling II)
  • - Two-Way AI Noise Cancelation
  • - Power Saving
  • AI Suite 3
  • - TurboV EVO
  • - DIGI+ VRM
  • - PC Cleaner
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manejabilidad
  • WOL by PME, PXE
• Accesorios
  • Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x TUF GAMING sticker
  • 2 x M.2 Rubber Packages
  • 1 x Screw package for M.2 SSD
• Documentation
  • 1 x TUF Certification card
  • 1 x User guide
• Sistema operativo
  • Windows® 11, Windows® 10 64-bit
• Factor de forma
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
