Placa base ultraduradera AMD A520 con solución VRM digital, LAN GbE, Smart Fan 5 con FAN STOP. Las placas base de la serie UD de GIGABYTE utilizan un diseño MOSFET PWM + Low RDS(on) digital puro para soportar las CPU AMD Ryzen™ de 3.ª generación al ofrecer una precisión increíble en la entrega de energía a los componentes más sensibles y que consumen más energía de la placa base, además de ofrecer un sistema mejorado. rendimiento y máxima escalabilidad de hardware.

Características

• Compatible con los procesadores AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series y Ryzen™ 3000 Series
• DDR4 sin búfer ECC/no ECC de doble canal, 4 DIMM
• Ranura PCIe 3.0 x16 Ultra Durable™
• Conectores NVMe PCIe 3.0 M.2
• Condensadores de audio de alta calidad y protección contra ruido de audio para una máxima calidad de audio
• LAN GbE con gestión de ancho de banda
• DisplayPort y HDMI traseros para compatibilidad con múltiples pantallas
• Smart Fan 5 cuenta con múltiples sensores de temperatura y cabezales de ventilador híbridos con FAN STOP
• Diseño de resistencias anti-azufre

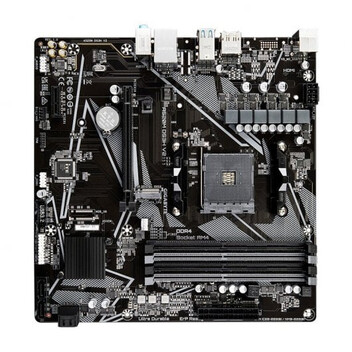

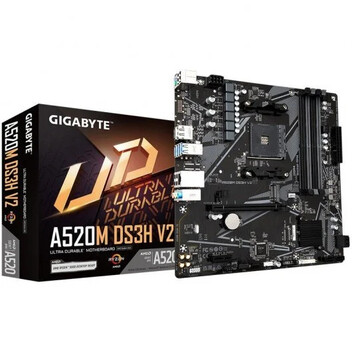

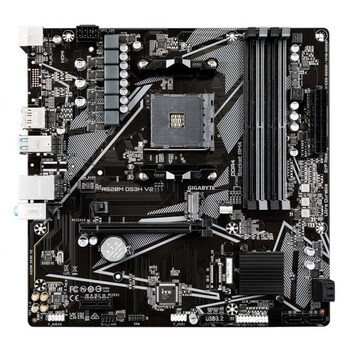

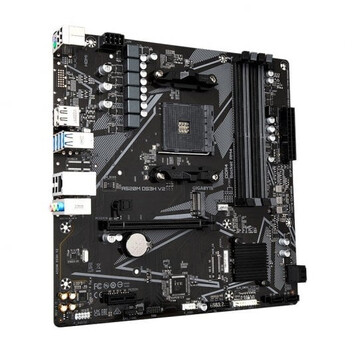

Especificaciones Gigabyte A520M DS3H V2 Rev 1.0

• Procesador
  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD A520
• Memoria
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Gráficos Integrados
  • Integrated Graphics Processor:
  • 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  • * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  • Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Puertos de Expansión
  • 1 x PCI Express x16 slot, integrated in the CPU:
  • Supporting PCIe 3.0 x16 mode
  • 1 x PCI Express x1 slot, integrated in the Chipset:
  • Supporting PCIe 3.0 x1 mode
• Interfaz de Almacenamiento
  • 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  • Supporting SATA and PCIe 3.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  • Supporting for RAID 0, RAID 1, and RAID 10
• USB
  • CPU:
  • 4 x USB 3.2 Gen 1 ports on the back panel
  • Chipset:
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Conectores Internos de E/S
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper
• Conectores del Panel Trasero
  • 1 x PS/2 keyboard/mouse port
  • 1 x DisplayPort
  • 1 x HDMI port
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• Controlador de E/S
  • iTE® I/O Controller Chip
  • Monitorización H/W
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash
  • Support for Xpress Install
• Software Incluido
  • LAN bandwidth management software
• Sistema Operativo
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Diseño
  • Micro ATX Form Factor; 24.4cm x 24.4cm
