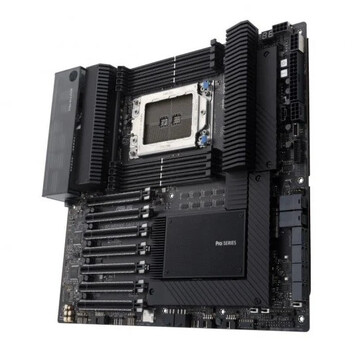

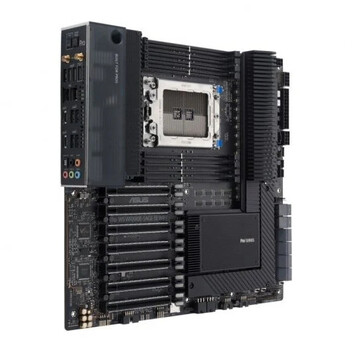

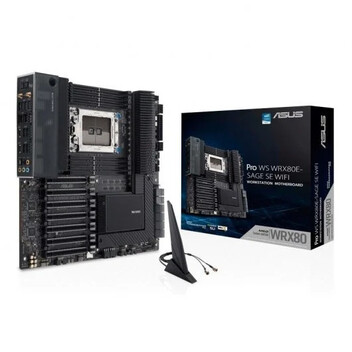

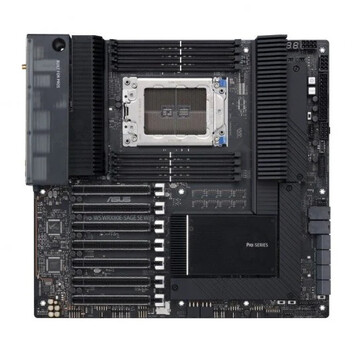

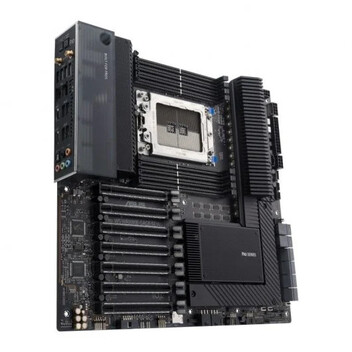

ASUS Pro WS WRX80E-SAGE SE WIFI está diseñado para liberar la increíble potencia de los últimos procesadores de la serie AMD® Ryzen® Threadripper ™ Pro y es una base confiable para cargas de trabajo creativas profesionales que se benefician de las CPU de múltiples núcleos, como la edición de video y 3D representación. Además, siete ranuras PCIe 4.0 con fortificación SafeSlot ofrecen un rendimiento excepcional con las últimas tarjetas gráficas de alta potencia.

Características:

• Zócalo AMD sWRX8: listo para procesadores de la serie AMD Ryzen ™ Threadripper ™ PRO
• Conectividad ultrarrápida: puerto USB 3.2 Gen 2x2 Type-C, 10 puertos USB 3.2 Gen 2, 3 x M.2 PCIe 4.0, tarjeta HYPER M.2 x16 Gen 4 e Intel® X550-AT2 dual 10Gb Ethernet
• Gestión remota ASMB9-iKVM: chip BMC para proporcionar inteligencia para su arquitectura IPMI para la gestión fuera de banda para mejorar el control a nivel de hardware para mejorar la eficiencia de TI
• Potente rendimiento: 16 etapas de potencia, compatibilidad con múltiples GPU y compatibilidad con memoria R-DIMM
• Estabilidad confiable: probado para confiabilidad 24/7, validado para compatibilidad sólida y equipado con SafeSlot para máxima seguridad

Especificaciones

• CPU
  • AMD® Ryzen™ Threadripper™ Pro Processors*
  • * Refer to www.asus.com for CPU support list.
• Chipset
  • AMD WRX80 Chipset
• Memory
  • Memory Channels:8DDR4 (Eight Channel)
  • Max Memory Size:2048GB
  • 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory*
  • 8 Channel Memory Architecture
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Expansion Slots
  • AMD Ryzen™ Threadripper™ PRO Series Processors
  • 7 x PCIe 4.0/3.0 x16 slot(s)*
  • * Support PCIe bandwidth bifurcation for RAID on CPU function.
• Multi-GPU Support
  • Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
• Storage
  • Supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
  • AMD Ryzen™ Threadripper™ PRO Series Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*
  • AMD WRX80 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*
  • 4 x SATA 6Gb/s ports
  • ASMedia ASM1061 Controller
  • 4 x SATA 6Gb/s ports
  • Supports NVMe RAID configurations via M.2 storages
  • *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.
• Ethernet
  • 1 x Intel® X550-AT2 dual 10Gb Ethernet
• Wireless & Bluetooth
  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1
• USB
  • Rear USB:Total 10 ports
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
  • Front USB:Total 7 ports
  • 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Audio
  • Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC
  • - Impedance sense for front and rear headphone outputs
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • - Supports up to 32-Bit/384 kHz playback"
  • Audio Features
  • - Audio Shielding
  • - Power pre-regulator reduces power input noise to ensure consistent performance
  • - Rear optical S/PDIF out port
  • - Premium Japanese audio capacitors
  • - Dedicated audio PCB layers
  • - Unique de-pop circuit
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)
  • 1 x ASUS Wi-Fi Module
  • 2 x Intel® X550-AT2 dual 10Gb Ethernet ports
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Interrnal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin CPU OPT Fan header(s)
  • 6 x 4-pin Chassis Fan header(s)
  • 1 x VRM heatsink Fan header
  • 1 x Chipset Fan header
• Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connector
  • 2 x 6-pin PCIe Graphics Card connector
  • 1 x 8-pin PCIe Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 8 x SATA 6Gb/s ports
  • 2 x U.2 slots
  • USB
  • 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
  • BMC Related
  • 1 x BMC switch
  • 1 x IPMI switch
  • 1 x Messange LED header
  • 1 x Micro SD card socket
  • 2 x LAN LED header(s)
  • 1 x Location LED header
  • 1 x Location button header
  • 1 x PSU_SMB header
  • 1 x SMART_PSU switch
  • 1 x VGA switch
  • 1 x VGA header
  • 1 x VPP_I2C header
• Miscellaneous
  • 1 x COM Port header
  • 1 x FlexKey button
  • 1 x Front Panel Audio header (AAFP)
  • 1 x SPI TPM header (14-1pin)
  • 1 x Start button
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x RTC Battery header
  • 1 x Thermal Sensor header
• Special Features
  • ASUS Q-Design
  • - Q-Code
  • - Q-Connector
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - Clear CMOS button
  • - ProCool II
  • - Pre-mounted I/O shield
  • - SafeSlot
  • Bespoke Motherboard Design & Business Focused Features
  • - Event Log in ASMB9-iKVM
  • - 24/7 Reliability
  • - Overcurrent Protection
  • ASMB9-iKVM for KVM-over-Internet
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • ASUS CPU-Z
  • AI Charger
  • ASUS Turbo LAN
  • DAEMON Tools
  • DTS:X® Ultra
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 6 x SATA 6Gb/s cables
  • 1 x VGA cable
• Miscellaneous
  • 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
  • 1 x Hyper M.2 X16 Gen 4 Card
  • 3 x M.2 Rubber Package(s)
  • 3 x M.2 SSD screw package(s)
  • 1 x Q-connector
• Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x User manual
• Operating System
  • Windows 10 64bit
• Form Factor
  • Extended ATX
  • 30.98cm*33.02cm
