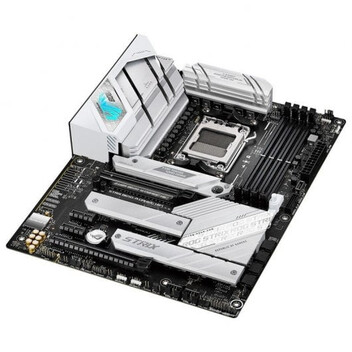

Placa base ASUS ROG Strix B650-A Gaming WiFi AMD Ryzen AM5 ATX, 12 + 2 etapas de potencia, DDR5, tres ranuras M.2, PCIe® 4.0, LAN de 2,5 Gb, WiFi 6E, puerto de E/S trasero USB 3.2 Gen 2x2 tipo C® y Aura Sync RGB.

Características:

• Zócalo AMD AM5: preparado para los procesadores de sobremesa AMD Ryzen™ serie 7000.
• Solución de alimentación sólida: 12 + 2 etapas de potencia agrupadas con conectores de alimentación ProCool de 8 + 4 pines, bobinas de aleación de gran calidad y condensadores duraderos para soportar procesadores multinúcleo.
• Diseño térmico optimizado: enormes disipadores térmicos del VRM con canales de flujo de aire cortados estratégicamentes y almohadillas térmicas de alta conductividad.
• Compatibilidad con M.2 de nueva generación: una ranura PCIe® 5.0 M.2 y dos ranuras PCIe 4.0 M.2 cubiertas con disipadores térmicos para conseguir el máximo rendimiento.
• Conectividad avanzada: un USB 3.2 Gen 2x2 tipo C® y ocho puertos USB traseros adicionales, conector del panel frontal USB 3.2 Gen 2 tipo C®, HDMI® 2.1, DisplayPort™ 1.4 y un PCIe 4.0 x16 SafeSlot.
• Red de alto rendimiento: WiFi 6E (802.11ax) integrado en placa, Bluetooth® 5.2 y Ethernet Intel® de 2,5 Gb con ASUS LANGuard.
• Control inteligente: cancelación de ruido bidireccional con IA y AI Networking, tecnologías exclusivas de ASUS.
• Audio para gaming inmersivo: ALC4080 con amplificador Savitech SV3H712, junto con DTS® Sound Unbound y Sonic Studio III.
• Personalización inigualable: iluminación RGB Aura Sync exclusiva de ASUS, incluido un cabezal RGB y tres cabezales RGB Gen 2 direccionables.
• Diseño práctico para personalización: ranura PCIe® Q-Release, M.2 Q-Latch, escudo de E/S premontado, botón BIOS?FlashBack™.
• Software intuitivo: panel de control UEFI BIOS fácil de usar, Armoury Crate RGB y gestor de dispositivos, así como suscripción de prueba a AIDA64 Extreme durante 60 días incluida.

Especificaciones:

•  CPU
  • AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  • * Refer to www.asus.com for CPU support list.
• Chipset
  • AMD B650
• Memory
  • 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO™)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
• Graphics
  • 1 x DisplayPort*
  • 1 x HDMI® port**
  • *Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • ** Supports 4K@60Hz as specified in HDMI 2.1.
  • *** VGA resolution support depends on processors' or graphic cards' resolution.

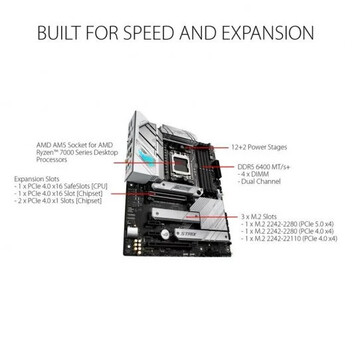

• Expansion Slots
  • AMD Ryzen™ 7000 Series Desktop Processors
  • 1 x PCIe 4.0/3.0 x16 slot
  • AMD B650 Chipset
  • 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)*
  • 2 x PCIe 4.0/3.0 x1 slots
  • *  PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
• Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  • AMD Ryzen™ 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • AMD B650 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)**
  • 4 x SATA 6Gb/s ports
  • *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
  • ** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode). When PCIEx16_2 slot is operating, M.2_3 will be disabled.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth v5.2
  • * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
• USB
  • Rear USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

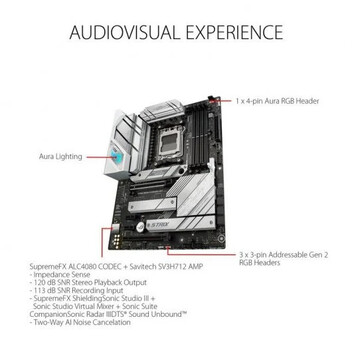

• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • - Impedance sense for front and rear headphone outputs
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • - Supports up to 32-Bit/384 kHz playback
  • Audio Features
  • - SupremeFX Shielding Technology
  • - Savitech SV3H712 AMP
  • - Premium audio capacitors
  • - Audio cover
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® I225-V 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™  button
• Internal I/O Connectors

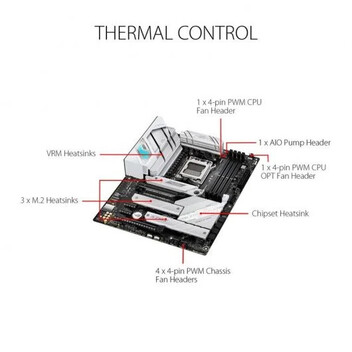

  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 header
  • 1 x AURA RGB headers
  • 1 x Clear CMOS header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™  header
  • 1 x COM_DEBUG  header
• Special Features
  • Extreme Engine Digi+
  • - 5K Black Metallic Capacitors
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - PCIe Slot Q-Release
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeSlot
  • - SafeDIMM
  • AURA Sync
  • - AURA RGB header
  • - Addressable Gen 2 headers
• Software Features
  • ROG Exclusive Software
  • - GameFirst VI
  • - ROG CPU-Z
  • - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • - Sonic Radar III
  • - DTS® Sound Unbound
  • - Anti-virus software
• ASUS Exclusive Software
  • Armoury Crate
  • - AIDA64 Extreme (60 days free trial)
  • - AURA Creator
  • - AURA Sync
  • - Xpert 4
  • - Power Saving
  • - Two-Way AI Noise Cancellation
  • AI Suite 3
  • - TPU
  • - DIGI+ VRM
  • - Turbo app
  • - PC Cleaner
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • FlexKey
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x M.2 Q-Latch package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
  • 2 x Rubber Packages for M.2
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
