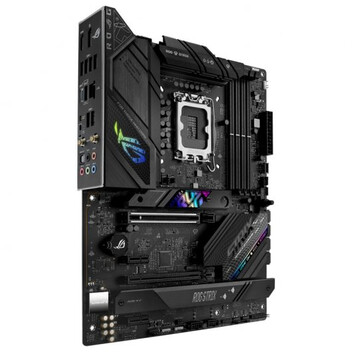

La placa base ASUS ROG STRIX B760-F GAMING WIFI está diseñada para alojar los procesadores híbridos Intel Core de 12ª y 13ª generación en el zócalo Intel LGA 1700. Será la base elegida para una configuración centrada en el rendimiento y la productividad. Diseñadas para jugadores exigentes que buscan rendimiento y fiabilidad a largo plazo, las placas base ASUS ROG STRIX Gaming te permiten sacar el máximo partido a tus componentes.

Características:

• Compatibilidad con los procesadores Intel Core de 12ª y 13ª generación en el zócalo LGA 1700
• Compatible con memoria DDR5 a 7800 MHz (OC)
• 3 ranuras M.2 PCIe 4.0
• Ranura PCI-Express 5.0 16x
• Código de audio ROG Supreme FX 7.1 ALC4080 y AMP Savitech SV3H712
• Puerto USB 3.2
• LAN de 2,5 GbE
• Wi-Fi 6E y Bluetooth 5.2

Especificaciones

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® B760 Chipset
• Memory
  • 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • **Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • ***Supports 4K@60Hz as specified in HDMI 2.1.

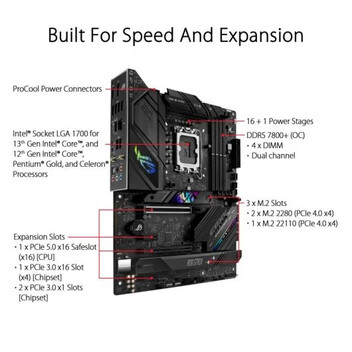

• Expansion Slots
  • Intel® 13th & 12th Gen Processors*
  • 1 x PCIe 5.0x16 slot (supports x16 mode)**
  • Intel®B760 Chipset**
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)***
  • 2 x PCIe 3.0 x1 slots
  • - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • ®Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth® v5.3**
  • * WiFi 6E 6GHz regulatory may vary between countries.
  • ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 6 x USB 3.2 Gen 1 ports (6 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • - Impedance sense for front and rear headphone outputs
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • - Supports up to 32-Bit/384 kHz playback
  • Audio Features
  • - SupremeFX Shielding Technology
  • - Savitech SV3H712 AMP
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Audio cover

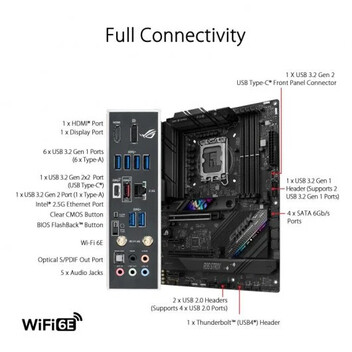

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 6 x USB 3.2 Gen 1 ports (6 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks *
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
  • *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
• Internal I/O
  • ConnectorsFan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 xThunderbolt™ (USB4®) header
• Special Features
  • Extreme Engine Digi+
  • - 5K Black Metallic Capacitors
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - PCIe Slot Q-Release
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot

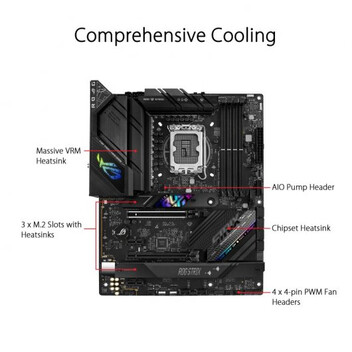

  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - Clear CMOS button
  • - CPU Socket lever protector
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeSlot
  • - SafeDIMM
  • Aura Sync
  • - Aura RGB header
  • - Addressable Gen 2 headers
• Software Features
  • ROG Exclusive Software
  • - GameFirst VI
  • - ROG CPU-Z
  • - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • - Sonic Radar III
  • - DTS® Sound Unbound
• ASUS Exclusive Software
  • Armoury Crate
  • - AIDA64 Extreme (60 days free trial)
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 4
  • - Power Saving
  • - Two-Way AI Noise Cancellation
  • AI Suite 3
  • - Performance And Power Saving Utility
  • - DIGI+ VRM
  • - PC Cleaner
  • MyAsus
  • Norton 360 for Gamers
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • MemTest86
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME

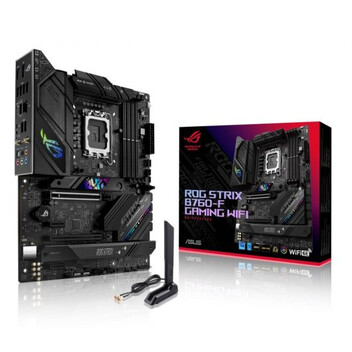

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
  • Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties package
  • 1 x M.2 Q-Latch package
  • 2 x M.2 Rubber Package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
