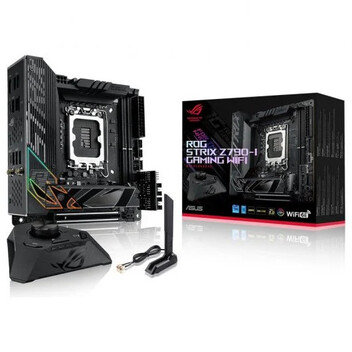

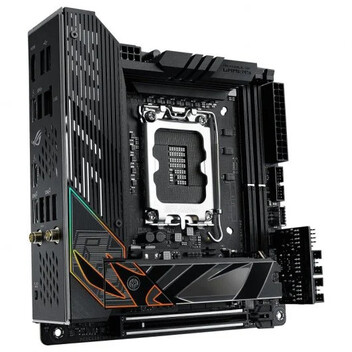

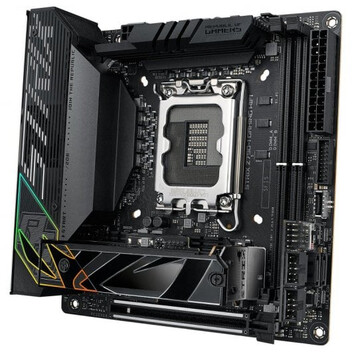

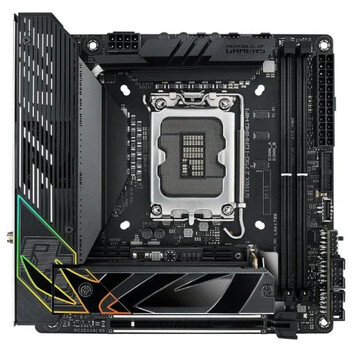

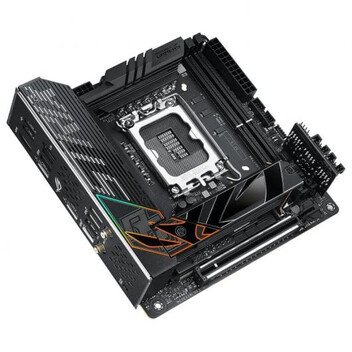

Placa base ASUS ROG Strix Z790-I Gaming WiFi Intel® Z790 LGA 1700 Mini-ITX, 10 + 1 etapas de potencia, DDR5, dos ranuras M.2, PCIe® 5.0, WiFi 6E, Thunderbolt™ 4 y USB 3.2 Gen 2x2 tipo C®

Características

• Zócalo Intel® LGA 1700: compatible con los procesadores Intel® Core™ de 13.ª Gen y los procesadores Intel Core™, Pentium® Gold y Celeron® de 12.ª Gen
• Innovaciones en materia de SFF: ROG Strix Hive traslada los controles de overclocking y la conectividad a los dispositivos de sobremesa, además de permitir una solución de audio de mayor tamaño. La tarjeta ROG FPS-II monta los puertos USB y SATA en vertical para posibilitar una mejor experiencia de construcción del sistema.
• Solución de alimentación sólida: solución de 10 + 1 etapas de potencia preparadas para 105 A por etapa con conectores de alimentación ProCool II, bobinas de aleación de gran calidad y condensadores duraderos para soportar procesadores multinúcleo.
• Diseño térmico del VRM optimizado: disipadores térmicos gruesos con cubierta de E/S integrada con almohadillas térmicas de alta conductividad, conectados con un caloducto en forma de L.
• Pila M.2 multinivel: una ranura PCIe®5.0 M.2 y una PCIe 4.0 M.2 se encuentran entre disipadores térmicos gruesos. Conforman una matriz que ahorra espacio y que es eficiente desde un punto de vista térmico.
• Completa conectividad: dos puertos Thunderbolt™ 4, puerto de E/S USB 3.2 Gen 2x2 tipo C® y conector del panel frontal, cuatro puertos USB 3.2 Gen 2 y Gen 1 adicionales, PCIe 5.0 x16 SafeSlot y HDMI® 2.1.
• Red de alto rendimiento: Intel Wi- Fi 6E (802.11ax) integrado en placa y Ethernet Intel de 2,5 Gb con ASUS LANGuard.
• Control inteligente: AI Overclocking, AI Cooling II, AI Networking y Cancelación de ruido bidireccional con IA, tecnologías exclusivas de ASUS, para simplificar la configuración y mejorar el rendimiento.
• Audio gaming inmersivo: ALC4050 con DAC ESS® SABRE 9260Q, junto con DTS® Sound Unbound y Sonic Studio III.
• Personalización inigualable: iluminación RGB Aura Sync exclusiva de ASUS, incluido un cabezal RGB y un cabezal Gen 2 direccionable.
• Diseño práctico para personalización: botón AI Overclocking, M.2 Q-Latch, escudo de E/S premontado, botón FlexKey, botón BIOS FlashBack™ y botón Clear CMOS.
• Software de prestigio: suscripción de 60 días de prueba a AIDA64 Extreme incluida y panel de control intuitivo de BIOS UEFI con MemTest86 integrado.

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel®
  • Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
• Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® Z790 Chipset
• Memory
  • 2 x DIMM, Max. 64GB, DDR5
  • 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
  • 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile
  • (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Graphics
  • 1 x HDMI® port***
  • 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots
  • Intel® 13th & 12th Gen Processors*
  • 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  • A resolution support depends on processors' or graphic cards' resolution.
• Storage
  • Total supports 2 x M.2 slots and 2 x SATA
  • 6Gb/s ports
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2280 (supports
  • PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
  • M.2_2 slot (Key M), type 2242/2260/2280
  • (supports PCIe 4.0 x4 mode)
  • 2 x SATA 6Gb/s ports****
  • *** M.2_1 comes from Intel® Z790 Chipset
  • when switched to PCIe 4.0 x4 mode
  • **** Install ROG FPS-II Card to support 2 x
  • SATA 6Gb/s ports.
  • 2 x SATA 6Gb/s ports****
  • *AMD RAIDXpert2 Technology supports both
  • NVMe RAID 0/1 and SATA RAID 0/1.
  • **** Install ROG FPS-II Card to support 2 x
  • SATA 6Gb/s ports
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth v5.3
  • * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
• USB
  • Rear USB (Total 9 ports)
  • 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB  Type-C®)
  • 3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
  • 1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
  • 2 x USB 2.0 port(s) (2 x Type-A)
  • Front USB (Total 3 ports)
  • 1 x USB 3.2 Gen 2x2 connector supports 1 USB Type-C®
  • 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports ROG STRIX HIVE (Total 2 ports)
  • 1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
  • 1 x USB 2.0 port(s) (1 x Type-A)
  • ROG FPS-II Card (Total 3 ports)
  • 2 x USB 2.0 header(s) additional 3 USB 2.0 ports**
• Audio
  • ROG High Definition Audio CODEC ALC4050
  • - Supports: Jack-detection
  • - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
  • - Supports up to 32-Bit/384 kHz playback
  • Audio Features
  • - ROG Hyper-Grounding Technology
  • - ESS® SABRE9260Q DAC
  • - Silver-plated audio jacks
  • - Optical S/PDIF out port & USB Type-C® port with indepent power solution
  • *** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.
• Back Panel I/O Ports
  • 2 x Thunderbolt™ 4 USB Type-C® port(s)
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 port(s) (3 x Type-A) (supports ROG STRIX HIVE)
  • 1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
  • 2 x USB 2.0 port(s) (2 x Type-A)
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin AIO Pump header(s)
  • 1 x 4-pin Chassis Fan header(s)
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • USB
  • 1 x USB 3.2 Gen 2x2 connector (support(s)
  • USB Type-C® )
  • 1 x USB 3.2 Gen 1 header(s) support(s) 2
  • additional USB 3.2 Gen 1 ports
  • Miscellaneous
  • 1 x Addressable Gen 2 header(s)
  • 1 x Aura RGB header(s)
  • 1 x Thermal Sensor header
  • 2 x USB Type-C® connectors to Install ROG
  • FPS-II card
  • ROG FPS-II card
  • 2 x SATA 6Gb/s ports
  • 1 x CPU Over Voltage jumper
  • 1 x Thermal Sensor header
  • 1 x Front Panel header
  • 1 x Alternative PCIe Mode switch
  • 2 x USB 2.0 header(s) support(s) additional
  • 3 USB 2.0 ports
• Special Features
  • Extreme Engine Digi+
  • - 5K Black Metallic Capacitors
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-DIMM
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink backplate
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - Clear CMOS button
  • - CPU Socket lever protector
  • - ProCool II
  • - Pre-mounted I/O shield
  • - SafeSlot
  • - SafeDIMM
  • Aura Sync
  • - Aura RGB header(s)
  • - Addressable Gen 2 header(s)
  • ROG STRIX HIVE
  • 1 x USB Type-C® connects to Motherboard
  • 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
  • 1 x USB 2.0 port(s) (1 x Type-A with BIOS
  • FlashBack™)
  • 1 x Headphone jack with Mic in
  • 1 x Mic in jack with Optical S/PDIF out
  • 1 x AI OC button
  • 1 x FlexKey button
  • 1 x BIOS FlashBack™ button
  • 1 x Volume Control Knob with Mute Button
  • Q-LED (CPU [red], DRAM [yellow], VGA
  • [white], Boot Device [yellow green])
• Software Features
  • ROG Exclusive Software
  • - GameFirst VI
  • - ROG CPU-Z
  • - Sonic Studio III + Sonic Studio Virtual
  • Mixer + Sonic Suite Companion
  • - Sonic Radar III
  • - DTS® Sound Unbound
• ASUS Exclusive Software
  • Armoury Crate
  • - AIDA64 Extreme (60 days free trial)
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 4 (with AI Cooling II)
  • - Power Saving
  • - Two-Way AI Noise Cancellation
  • AI Suite 3
  • - Easy Optimization with AI Overclocking
  • - TPU
  • - DIGI+ VRM
  • - Turbo app
  • - PC Cleaner
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • FlexKey
  • MemTest86
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • 1 x ROG USB2.0 splitter cable
  • 1 x Panel Cable
  • ROG FPS-II Card
  • 1 x ROG FPS-II Card
  • ROG STRIX HIVE
  • 1 x ROG STRIX HIVE
  • 1 x USB Type-C® power connection cable
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x Rubber Package(s) for M.2
  • 1 x Q-Latch package(s) for M.2
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
• Installation Media
  • 1 x User guide
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • Mini-ITX Form Factor
  • 6.7 inch x 6.7 inch( 17cm x 17cm)
