Asus TUF GAMING B660M-PLUS D4: Te enseñamos el mejor precio de España

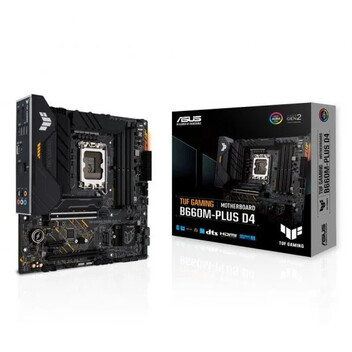

ASUS TUF GAMING B660M-PLUS D4 Placa base Intel® B660 (LGA 1700) mATX, 10+1 etapas de alimentación DrMOS, compatibilidad con PCIe 5.0, dos ranuras M.2 PCIe 4.0, Aura Sync, cancelación de ruido bidireccional con IA

Características:

• Zócalo Intel® LGA 1700: Compatible con los procesadores Intel® de 12.ª Gen.

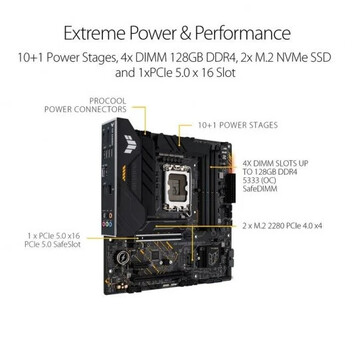

• Solución de alimentación mejorada: 10+1 etapas de alimentación DrMOS, PCB de seis capas, 8+4 tomas ProCool, componentes TUF de grado militar y VRM Digi+ para ofrecer la máxima durabilidad.
• Refrigeración integral: Disipador VRM ampliado, Stack Cool 3+, disipador M.2, disipador PCH, conectores de ventilación híbridos y Fan Xpert 2+.
• Conectividad de última generación: Ranura PCIe 5.0, ranuras M.2 PCIe 4.0, USB 3.2 Gen. 2x2 de tipo C® trasero, conector frontal USB 3.2 Gen. 1 de tipo C® y soporte Thunderbolt 4™.
• Diseñada para gaming online: Realtek 2.5Gb Ethernet y TUF LANGuard.
• Cancelación de ruido bidireccional con IA: Reduce el ruido de fondo del micrófono y la salida de audio para que te comuniques con claridad mientras juegas y participas en videoconferencias.

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset Intel® B660 Chipset
• Memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • ***Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' resolution.
• Expansion Slots
  • Intel® 12th Gen Processors
  • 1 x PCIe 5.0 x16 slot
  • Intel® B660 Chipset*
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x1 slot
  • * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
• Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280
  • - Intel® 12th Gen processors support PCIe 4.0 x4 mode.
  • Intel® B660 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
• USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 2 ports (4 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Power pre-regulator reduces power input noise to ensure consistent performance
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Dedicated audio PCB layers

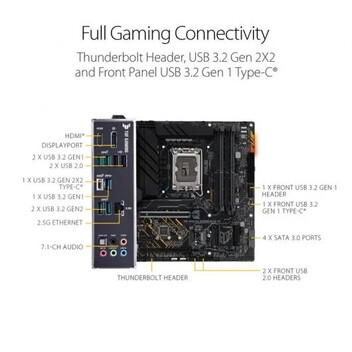

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 2 ports (4 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous

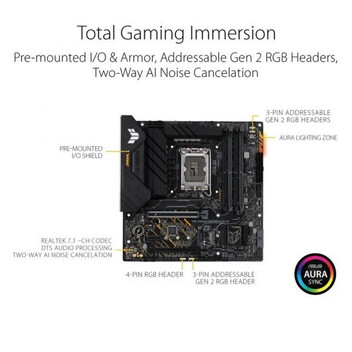

  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ header
• Special Features
  • ASUS TUF PROTECTION
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - Enhanced DRAM Overcurrent Protection
  • - ESD Guards
  • - TUF LANGuard
  • - Overvoltage Protection
  • - SafeSlot
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - Flexible M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - CPU Socket lever protector
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeDIMM
  • AURA Sync
  • - AURA RGB header
  • - Addressable Gen 2 headers
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - AURA Creator
  • - AURA Sync
  • - Fan Xpert 2+
  • - Two-Way AI Noise Cancelation
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability WOL by PME, PXE

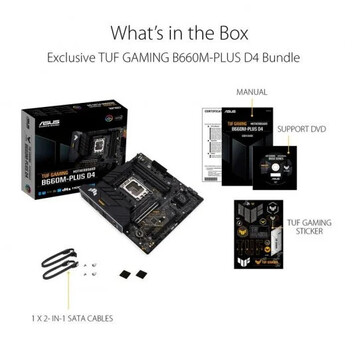

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x M.2 Rubber Package
  • 1 x M.2 SSD screw package
  • 1 x TUF Gaming sticker
• Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x TUF Certification card
  • 1 x User guide
• Operating System Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • mATX Form Factor
  • 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
