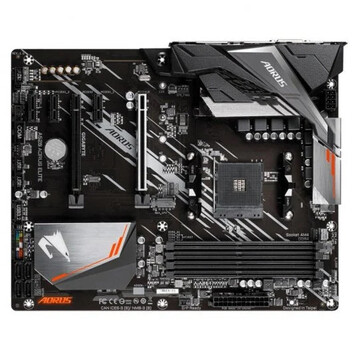

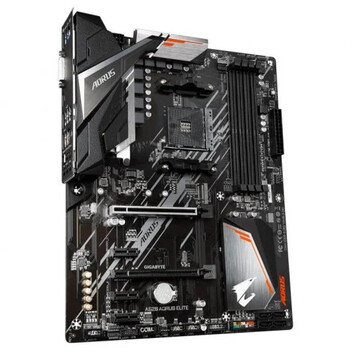

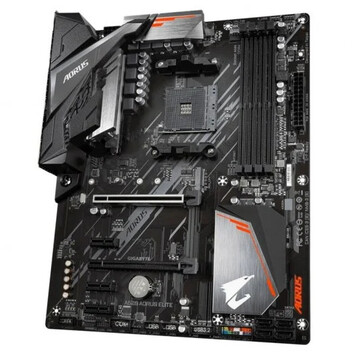

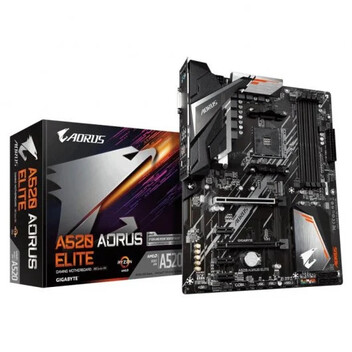

La Gigabyte Aorus A520 Aorus Elite es una placa base con socket AMD AM4 y Chipset A520.

Características:

• Admite procesadores AMD Ryzen ™ de tercera generación
• DDR4 sin búfer ECC / no ECC de doble canal, 4 DIMM
• Solución VRM digital pura de 5 + 3 fases con MOSFET de bajo RDS (activado)
• Conector ultrarrápido NVMe PCIe 3.0 x4 M.2
• Audio AMP-UP con ALC1200 y condensadores de audio de gama alta
• LAN para juegos 8118 exclusiva de GIGABYTE con gestión de ancho de banda
• Puertos HDMI, DVI-D para múltiples pantallas
• RGB FUSION 2.0 admite tiras de LED direccionables y LED RGB
• Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
• Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
• IO Shield preinstalado para una instalación fácil y rápida

Especificaciones:

• CPU
  • AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD A520
• Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • 3rd Gen AMD Ryzen™ Processors:
  • Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics

  • Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  • * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB
• Audio
  • Realtek® ALC1200 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN
  • Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
• Expansion Slots

  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
  • 3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
  • * The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2 slot. The PCIEX2 slot becomes unavailable when a device is installed in the PCIEX1_2 or PCIEX1_3 slot.
• Storage Interface

  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  • Chipset:
  • 4 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10
• USB

  • CPU:
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 3 x USB 3.2 Gen 1 ports on the back panel
  • Chipset:
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button

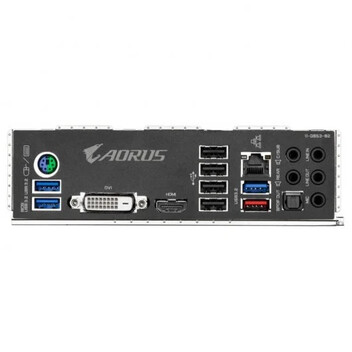

• Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
• H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
• Operating System
  • Support for Windows 10 64-bit
• Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm,
