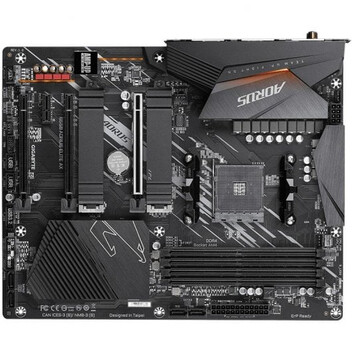

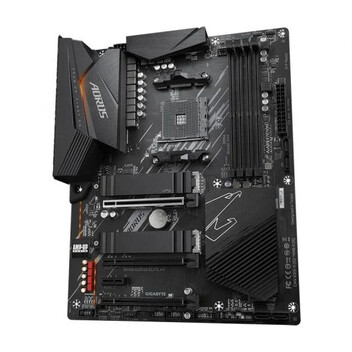

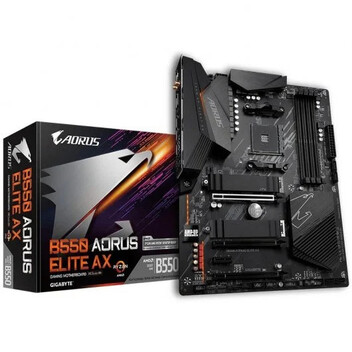

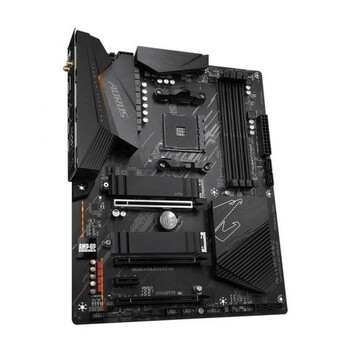

Comprar Gigabyte B550 AORUS ELITE AX pagando menos eligiendo la tienda más barata

Placa base AMD B550 AORUS con VRM digital real de 12 + 2 fases, disipadores de calor de superficie agrandados, ranura PCIe 4.0 x16, PCIe 4.0 / 3.0 x4 M.2 dual con protectores térmicos duales, Intel® WiFi 6802.11ax, LAN de 2.5GbE, RGB FUSION 2.0 , Q-Flash Plus

Características

• Admite AMD Ryzen ™ 5000 Series / 3rd Gen Ryzen ™ y 3rd Gen Ryzen ™ con procesadores gráficos Radeon ™
• DDR4 sin búfer ECC / no ECC de doble canal, 4 DIMM
• Verdadera solución VRM digital de 12 + 2 fases con 50A DrMOS
• Diseño térmico avanzado con disipadores de calor de superficie agrandados
• Ranura Ultra Durable ™ PCIe 4.0 x16
• Dual Ultra-Fast NVMe PCIe 4.0 / 3.0 x4 M.2 con protectores térmicos dobles
• Intel® WiFi 6802.11ax 2T2R y BT5 integrados con antena AORUS
• Audio AMP-UP con condensadores ALC1200 y WIMA
• LAN de 2,5 GbE ultrarrápida con gestión de ancho de banda
• Soporte trasero DisplayPort y HDMI
• RGB FUSION 2.0 admite tiras de LED direccionables y LED RGB
• Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
• Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
• IO Shield preinstalado para una instalación fácil y rápida

Especificaciones:

• CPU
  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD B550
• Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • AMD Ryzen™ 5000 series processors:
  • Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ Processors:
  • Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:
  • 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  • * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB
• Audio
  • Realtek® ALC1200 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Wireless Communication module
  • Intel® Wi-Fi 6 AX200
  • WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  • - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
  • - Supporting PCIe 3.0 x2 mode
  • 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
  • - Supporting PCIe 3.0 x1 mode
  • 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
  • - Supporting PCIe 3.0 x1 mode
• Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  • - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • - Supporting SATA and PCIe 3.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  • - Support for RAID 0, RAID 1, and RAID 10
• USB
  • CPU:
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports on the back panel
  • Chipset:
  • 2 x USB 3.2 Gen 1 ports on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 2 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper

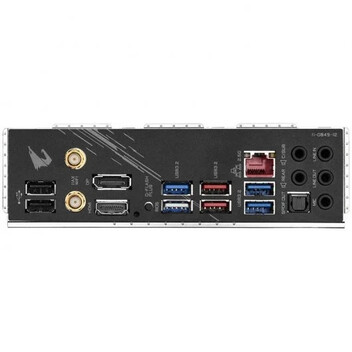

• Back Panel Connectors
  • 1 x DisplayPort
  • 1 x HDMI port
  • 2 x SMA antenna connectors (2T2R)
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
  • I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flas
  • Support for Xpress Install
  • Bundled Software
    • Norton® Internet Security (OEM version)
    • Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • Operating System
    • Support for Windows 10 64-bit
  • Form Factor
    • ATX Form Factor; 30.5cm x 24.4cm
