Gigabyte B550M Aorus Elite: Encuentra ofertas y compra al mejor precio de España

La placa base Gigabyte B550M AORUS ELITE soporta los procesadores AMD Ryzen de tercera generación.

Características:

• Admite procesadores AMD Ryzen ™ de tercera generación
• Doble canal ECC / No ECC DDR4 sin búfer, 4 DIMM
• Solución VRM digital pura de 5 + 3 fases con MOSFET de bajo RDS (encendido)
• Ranura Ultra16 Durable ™ PCIe 4.0 Ready x16
• Conectores duales Ultra-Fast NVMe PCIe 4.0 / 3.0 M.2
• Condensadores de audio de alta calidad y protección contra ruido de audio para la mejor calidad de audio
• LAN GbE Gaming 8118 exclusiva de GIGABYTE con gestión de ancho de banda
• Soporte trasero HDMI y DVI
• RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras LED direccionables y LED RGB
• Smart Fan 5 presenta múltiples sensores de temperatura, encabezados de ventilador híbridos con FAN STOP
• Q-Flash Plus Update BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
• Diseño de resistencias anti-azufre

Especificaciones:

• CPU

  • AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
  • (Please refer "CPU Support List" for more information.)
• Chipset

  • AMD B550
• Memory

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • 3rd Gen AMD Ryzen™ Processors:
  • Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • New Generation AMD Ryzen™ with Radeon™ Graphics processors:
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics

  • Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  • * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB
• Audio

  • Realtek® ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on
  • configuring the audio software.
• LAN

  • Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
• Expansion Slots

  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  • 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode
  • 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:Supporting PCIe 3.0 x1 mode
• Storage Interface

  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  • 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:Supporting SATA and PCIe 3.0 x2 SSDs
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10
• USB

  • CPU:4 x USB 3.2 Gen 1 ports on the back panel
  • Chipset:2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button

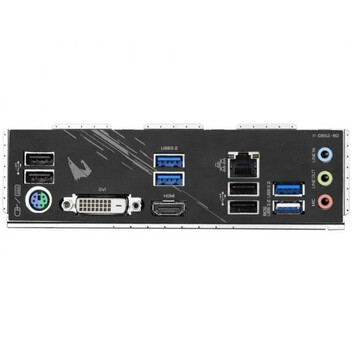

• Back Panel Connectors

  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
  • I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features

  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software

  • Norton® Internet Security (OEM version)
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
• Operating System

  • Support for Windows 10 64-bit
• Form Factor

  • Micro ATX Form Factor; 24.4cm x 24.4cm
