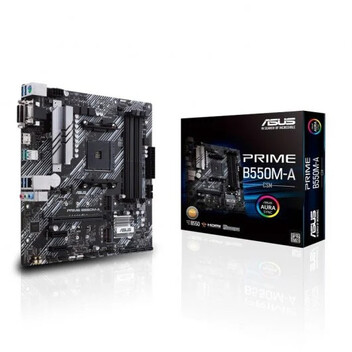

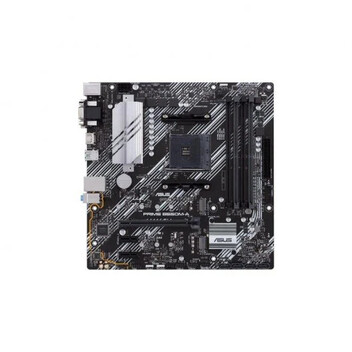

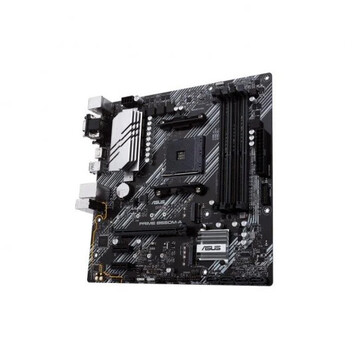

Comprar Asus PRIME B550M-A al mejor precio de España

La serie ASUS Prime está diseñada por expertos para liberar todo el potencial de la plataforma AMD Ryzen de tercera generación. Con un diseño de potencia robusto, soluciones integrales de enfriamiento y opciones de ajuste inteligentes, las placas base de la serie Prime B550 brindan a los usuarios diarios y a los constructores de PC de bricolaje una gama de opciones de ajuste de rendimiento a través de características intuitivas de software y firmware.

Características:

• Socket AMD AM4: Listo para procesadores AMD Ryzen™ de tercera generación.
• Refrigeración integral: Disipador VRM, disipador PCH y Fan Xpert 2+.
• Conectividad ultrarrápida: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Tipo-A.
• Aura Sync RGB: Puerto direccionable Gen 2 incorporado para tiras de LED RGB, sincronizado fácilmente con hardware compatible con Aura Sync

Especificaciones:

• CPU
  • Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
  • * Refer to www.asus.com for CPU support list
• Chipset
  • AMD B550
• Memory
  • 3rd Gen AMD Ryzen™ Processors
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
  • Next Generation AMD Ryzen PRO Processors
  • 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
  • Dual Channel Memory Architecture
  • ECC Memory (ECC mode) support varies by CPU.
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x HDMI 2.1(4K@60HZ)
• Expansion Slots
  • 3rd Gen AMD Ryzen™ Processors
  • 1 x PCIe 4.0 x16 (x16 mode)
  • AMD B550 Chipset
  • 2 x PCIe 3.0 x1
• Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • 3rd Gen AMD Ryzen™ Processors :
  • 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
  • AMD B550 Chipset :
  • 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  • 4 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
• LAN
  • Realtek RTL8111H 1Gb Ethernet
• Audio
  • Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature :
  • - LED-illuminated design
  • - Audio Shielding
  • - Dedicated audio PCB layers
  • - Premium Japanese audio capacitors
• USB Ports
  • Rear USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • Front USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • 4 x USB 2.0 port(s)(4 x Type-A)
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert 2+
  • - EZ update
  • ASUS CPU-Z
  • AI Charger
  • DAEMON Tools
  • Norton Anti-virus software (Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
  • ASUS 5X PROTECTION III
  • - ASUS DIGI+ VRM
  • - ASUS LANGuard
  • - ASUS Overvoltage Protection
  • - ASUS SafeSlot Core
  • - ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
  • - ASUS Q-DIMM
  • - ASUS Q-Slot
  • ASUS Thermal Solution
  • - Aluminum heatsink design
  • AURA Sync
  • - Standard RGB headers
  • - Addressable Gen 2 RGB header
  • ASUS Lighting Control
• Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 3 x Audio jack(s)
• Internal I/O Ports
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 2 x Chassis Fan connector(s)
  • 2 x Aura RGB Strip Headers
  • 1 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 4 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
  • 1 x Speaker connector
• Accessories
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • User manual
  • 1 x M.2 SSD screw package(s)
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PXE
• Operating System
  • Windows® 10 64-bit
• Form Factor
  • mATX Form Factor
  • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
