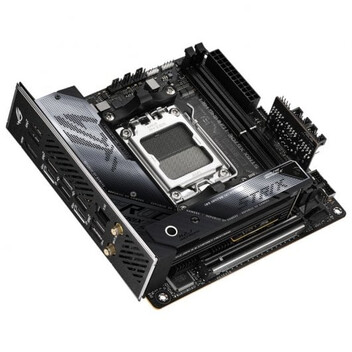

El WiFi para juegos ROG Strix X670E-I incorpora la última tecnología en el diminuto espacio mini-ITX y luego se ramifica con el ROG Hive para poner controles vitales y E/S al alcance de tu mano. A nivel de placa base, las ranuras PCIe 5.0 para gráficos y almacenamiento se combinan con DDR5 de dos canales para brindar un ancho de banda a gran escala para juegos y cargas de trabajo intensivas de CPU. La entrega de potencia pesada y los disipadores de calor apilados verticalmente aplastan las térmicas y sientan una base sólida para las herramientas de overclocking exclusivas de ROG para superar los límites del rendimiento. Con todo esto y más, este pequeño titán ofrece una construcción AM5 que ahorra espacio y le permite alojar cómodamente pantallas más grandes y una variedad de periféricos para juegos ROG en su escritorio.

Características:

• CONECTIVIDAD LÍDER: La experiencia ATX escaló cuidadosamente a mini-ITX: construya más fácilmente la tarjeta ROG FPS-II y adorne su escritorio con ROG Hive, dos puertos USB4® y soporte para el último estándar WiFi 6E.
• JUEGA CON ESTILO: El colorway oscuro de ROG Strix combina perfectamente con otros productos del diverso ecosistema ROG, lo que le permite crear una configuración de juego totalmente personalizada que refleje su estilo personal.
• UTILIDADES DE SOFTWARE: El software exclusivo de ROG ofrece sintonización de audio intuitiva y mejoras de juego para que pueda configurar su juego de la manera que desee.

Especificaciones:

• CPU
  • AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  • * Refer to www.asus.com for CPU support list.
• Chipset
  • AMD X670
• Memory
  • 2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO™)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
• Graphics
  • 1 x HDMI® port*
  • 2 x USB4® ports support USB Type-C® display outputs**
  • *Supports 4K@60Hz as specified in HDMI 2.1.
  • ** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots
  • AMD Ryzen™ 7000 Series Desktop Processors
  • 1 x PCIe 5.0 x16 slot(s)
• Storage
  • Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
  • AMD Ryzen™ 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
  • AMD X670 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280
  • (supports PCIe 4.0 x4 mode)
  • 2 x SATA 6Gb/s ports****
  • *AMD RAIDXpert2 Technology supports both
  • NVMe RAID 0/1 and SATA RAID 0/1.
  • **** Install ROG FPS-II Card to support 2 x
  • SATA 6Gb/s ports
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth v5.2
  • * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
• USB
  • Rear USB (Total 10 ports)
  • 2 x USB4® port(s) with Intel® JHL8540 USB4®
  • controller (2 x USB Type-C®)
  • 5 x USB 3.2 Gen 2 port(s) (5 x Type-A)
  • 3 x USB 2.0 port(s) (3 x Type-A)
  • Front USB (Total 3 ports)
  • 1 xUSB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • ROG STRIX HIVE (Total 2 ports)
  • 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
  • 1 x USB 2.0 port(s) (1 x Type-A)
  • ROG FPS-II C (Total 3 ports)
  • 2 x USB 2.0 header(s) additional 3 USB 2.0 ports**
• Audio
  • ROG High Definition Audio CODEC ALC4050
  • - Supports: Jack-detection
  • - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
  • - Supports up to 32-Bit/384 kHz playback
  • Audio Features
  • - ROG Hyper-Grounding Technology
  • - ESS® SABRE9260Q DAC
  • - Silver-plated audio jacks
  • - Optical S/PDIF out port & USB Type-C®  port with indepent power solution
  • - Dedicated audio PCB layers
  • *All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE

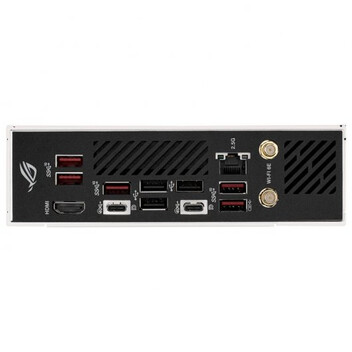

• Back Panel I/O Ports
  • 2 x USB4® port(s) with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
  • 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE)
  • 3 x USB 2.0 port(s) (3 x Type-A)
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® I225-V 2.5Gb Ethernet port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin AIO Pump header(s)
  • 1 x 4-pin Chassis Fan header(s)
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • USB
  • 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C® )
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • Miscellaneous
  • 1 x Addressable Gen 2 header(s)
  • 1 x AURA RGB header(s)
  • 1 x RTC Battery header
  • 1 x Thermal Sensor header
  • 1 x 2 pin Power_BTN header
  • 2 x USB Type-C® connectors to Install ROG
  • FPS-II card*
  • ROG FPS-II card
  • 2 x SATA 6Gb/s ports
  • 1 x CPU Over Voltage jumper
  • 1 x Clear CMOS header
  • 1 x Front Panel header
  • 1 x Alteration mode switch
  • 2 x USB 2.0 header(s) support(s) additional
  • 3 USB 2.0 ports
• Special Features
  • Extreme Engine Digi+
  • -5K Black Metallic Capacitors
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-DIMM
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - Aluminum backplate
  • - M.2 Chipset Fan
  • - VRM heatsink design
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - ProCool II
  • - Pre-mounted I/O shield
  • - SafeSlot
  • - SafeDIMM
  • AURA Sync
  • - AURA RGB header(s)
  • - Addressable Gen 2 header(s)

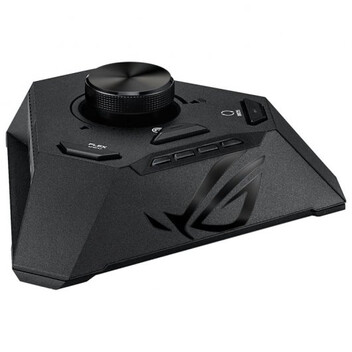

  • ROG STRIX HIVE
  • 1 x USB Type-C® connects to Motherboard
  • 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
  • 1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack™)
  • 1 x Headphone jack with Mic in
  • 1 x Mic in jack with Optical S/PDIF out
  • 1 x EZ mode PBO button
  • 1 x FlexKey button
  • 1 x BIOS FlashBack™  button
  • 1 x Volume Control Knob with Mute Button
  • Q-LED (CPU [red], DRAM [yellow], VGA
  • [white], Boot Device [yellow green])
• Software Features
  • ROG Exclusive Software
  • - GameFirst VI
  • - ROG CPU-Z
  • - Sonic Studio III + Sonic Studio Virtual
  • Mixer + Sonic Suite Companion
  • - Sonic Radar III
  • - DTS® Sound Unbound
  • - Anti-virus software
  • ASUS Exclusive Software
  • Armoury Crate
  • - AIDA64 Extreme (60 days free trial)
  • - AURA Creator
  • - AURA Sync
  • - Fan Xpert 4 (with AI Cooling II)
  • - Power Saving
  • - Two-Way AI Noise Cancellation
  • AI Suite 3
  • - TPU
  • - DIGI+ VRM
  • - Turbo app
  • - PC Cleaner
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • Dynamic OC Switcher
  • FlexKey
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE

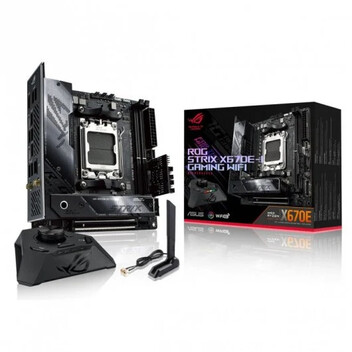

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • 1 x ROG USB2.0 splitter cable
  • 1 x Panel Cable
  • ROG FPS-II Card
  • 1 x ROG FPS-II Card
  • ROG STRIX HIVE
  • 1 x ROG STRIX HIVE
  • 1 x USB Type-C® power connection cable
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x Rubber Package(s) for M.2
  • 1 x Q-Latch package(s) for M.2
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
• Installation Media
  • 1 x User guide
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • Mini-ITX Form Factor
  • 6.7 inch x 6.7 inch( 17cm x 17cm)
